51 16 164 Replacing Cover For Rear Centre Console

51 16 164 Replacing Cover For Rear Centre Console







When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.







Necessary preliminary tasks:
- Remove rear centre console trim

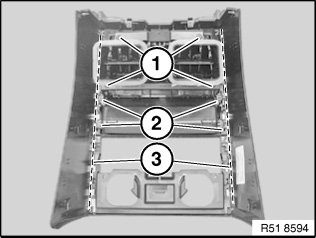

Release screws and modify fresh air grille (1).
Detach storage compartment (2) and modify.
Remove left and right decorative trim in the marked area (3) and modify.

Installation:
Check that fibreglass lines in decorative trim area properly clipped on. Install decorative trims flush. Retaining tabs and clips must not be damaged.
