51 16 ... Removing and Installing/Replacing Side Trim Panels on Centre Console on Left or Right

51 16 ... Removing And Installing/Replacing Side Trim Panels On Centre Console On Left/Right

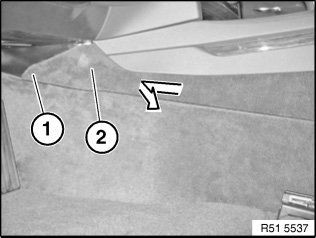

Release screw (1) on left/right.
Slide panel (2) on left/right in direction of arrow and remove.







Installation:

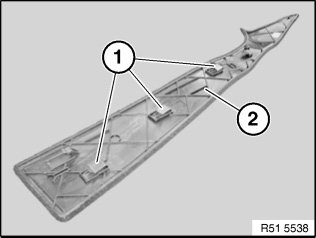

Retainers (1) must be correctly seated in panel guides (2).







Feed side carpet (1) towards front out of centre console.

Installation:
Replace faulty retainers (2).
