51 76 050 Removing and Installing/Replacing Tailgate Seal (Lower Tailgate)

51 76 050 Removing And Installing/Replacing Tailgate Seal (Lower Tailgate)







Necessary preliminary tasks:
- Remove water gutter cover from side

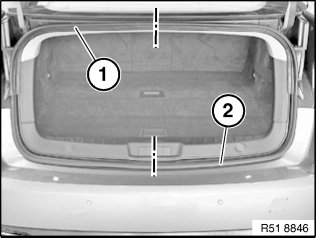

Detaching and removing upper seal (1).
Detaching and removing lower seal welt (2).

Installation:
Start installation from the centre.
Fit lower seal welt (2) in front of upper seal (1).
Install sealing profile (water gutter) of upper seal (1) in correct position on left and right in tailgate.
