51 49 120 Removing and Installing/Replacing Cargo Cover

51 49 120 Removing And Installing/Replacing Cargo Cover







Necessary preliminary tasks:
- Remove partition wall mounting cover
- Remove front luggage compartment recess panel
- Remove cross member cover

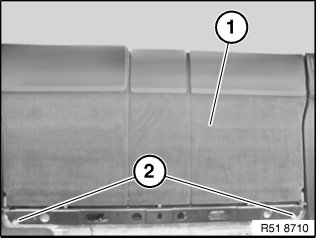

Loosen bolts (2) from cargo cover frame (1).







Installation:

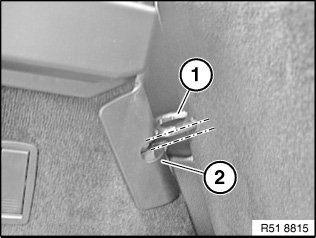

Left and right strikers (1) must not brush at top against lock cover (2).







Installation:

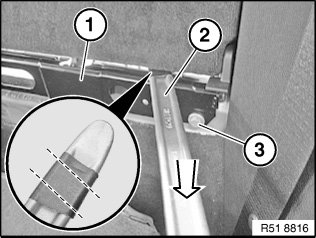

To avoid damage, wrap tyre iron (2) as pictured.

Tighten screw (3) loosely.
Carefully position cargo cover frame (1) with tyre iron (2) in downward direction (max. iron travel = frame hole stop at screw).
Tighten screw (3).

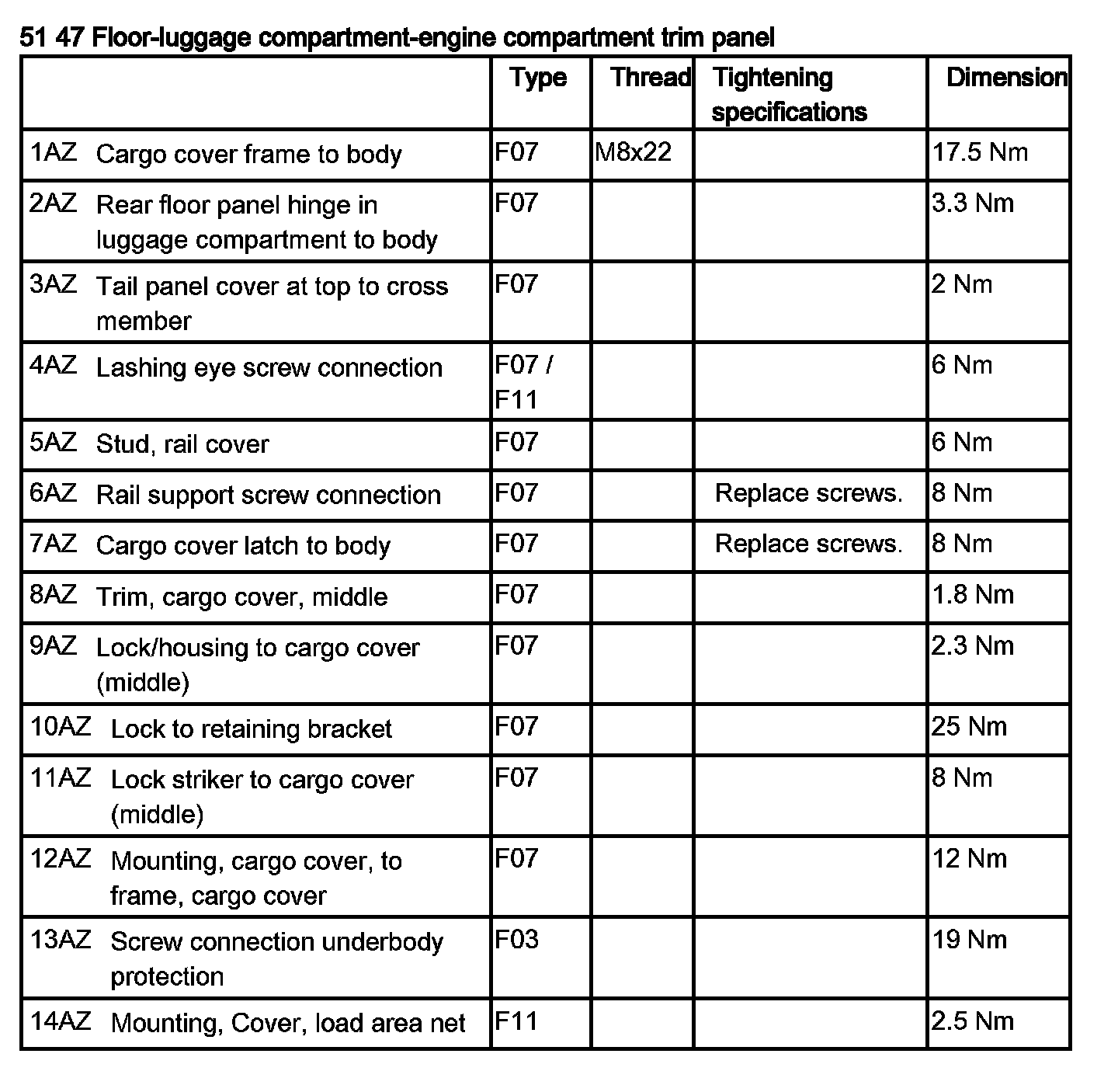

Tightening torque 51 47 1AZ.

NOTE: Check freedom of movement of lock striker again.







Fold down cargo cover toward the front.

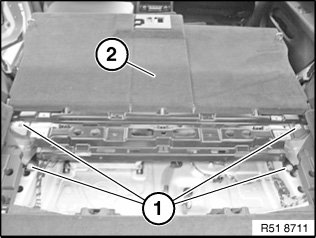

Loosen bolts (1) from cargo cover frame (2).
Tightening torque 51 47 1AZ.

Installation:
Centre cargo cover (2).

Completely remove cargo cover with the aid of a 2nd person.
