51 49 110 Remove and Install/Replace Lower Trim of Loading Edge

51 49 110 Remove And Install/Replace Lower Trim Of Loading Edge







Special tools required:
- 00 9 321







Necessary preliminary tasks:
- Remove trim from left and right tailgate.
- Remove trim on upper part of tailgate
- Schalter Remove tailgate opener
- Remove luggage compartment lighting

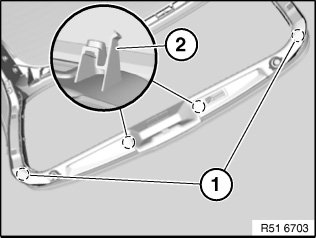

Use special tool to lift clips (1) 00 9 321 unhinge trim hook (2) and remove trim panel.







Installation:

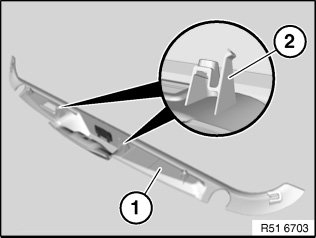

Clamps (2) on trim panel (1) must not be damaged, replace trim panel if necessary.
