51 49 022 Removing and Installing/Replacing Trim Panel For Rear Lid, Side Left or Right

51 49 022 Removing And Installing/Replacing Trim Panel For Rear Lid, Side Left Or Right







Necessary preliminary tasks:
- Remove trim panel at top

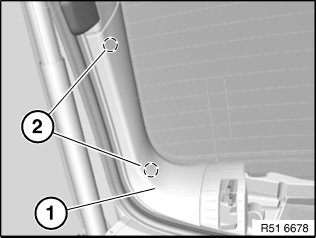

Unclip trim panel (1) towards inside.

Installation:
If necessary, replace faulty clips (2).







Installation:

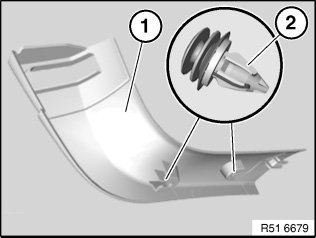

Fixtures (2) on trim panel (1) must not be damaged, replace trim panel if necessary.
