51 49 000 Removing and Installing/Replacing Bottom Tailgate Trim Panel Tailgate

51 49 000 Removing And Installing/Replacing Bottom Tailgate Trim Panel Tailgate







Special tools required:
- 00 9 317







Necessary preliminary tasks:
- Remove luggage compartment lights
- Detach emergency release (4)

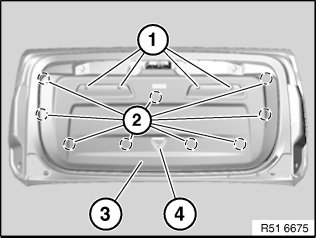

Release screws (1), unclip clamps (2) with special tool 00 9 317 and remove trim panel (3).
Tightening torque: 51 49 1AZ







Installation:

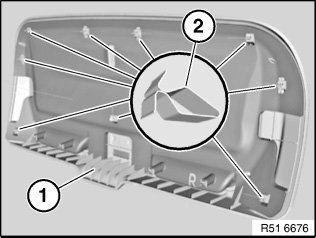

Clamps (2) on trim panel (1) must not be damaged, replace if necessary







Replacement only:

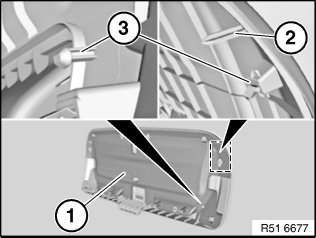

Adjust sound insulation (1) in guide (2). Click on mounting (3).
