51 49 ... Removing and Installing/Replacing Trim For Rear Lid, Side Left or Right

51 49 ... Removing And Installing/Replacing Trim For Rear Lid, Side Left Or Right

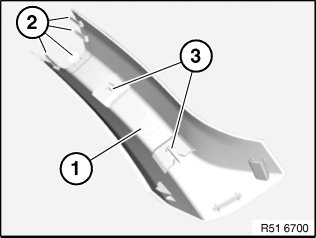

Starting from (A), unclip trim panel (1) inwards.

Installation:
If necessary, replace faulty clips (2).







Installation:
Mountings (3) and guides (2) on trim panel (1) must not be damaged; replace trim panel if necessary.
