51 49 ... Removing and Installing/Replacing Rear Lid Storage Shelf

51 49 ... Removing And Installing/Replacing Rear Lid Storage Shelf







- Release screws (1), turn retainers (2) on trim panel (3) 90° to release, remove cover (4) in direction of arrow

Tightening torque: 51 49 3AZ

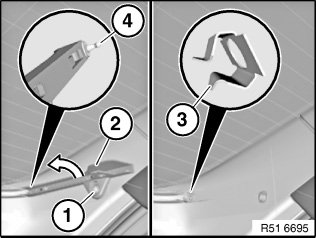

Release retaining rail (2) screw (1) and unclip journal (4) from retainer (3) in direction of arrow.
Tightening torque: 51 49 4AZ
Retainer (3) and journal (4) must not be damaged, replace if necessary.
