41 62 540 Remove / Install / Replace Both Tailgate Hinges (Tailgate Removed)

41 62 540 Remove / Install / Replace Both Tailgate Hinges (Tailgate Removed)







Read contents of Body, General.
For stripping and rigging operations, refer to texts on KSD CD (FR number 41 62 540).







Operation is described on the left side. Right side identical.

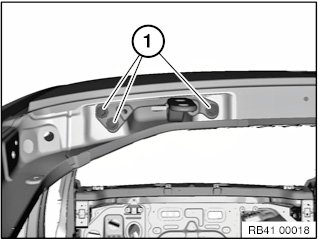

Release screws (1).
Remove hinge.

Installation note:
Tightening torque 41 62 2AZ.
Adjust rear lid on the basis of the body gap dimensions.
