61 31 321 Removing and Installing/Replacing Radio and A/C Control Panel

61 31 321 Removing And Installing Radio And A/C Control Panel







IMPORTANT:
Risk of damage.
A hard disk is installed in the Car Information Computer (CIC).
Carry out mechanical work on the CIC and adjacent components with care.
Avoid subjecting the CIC to vibration/shocks.







IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection).







IMPORTANT:
Carry out installation in a dust-free workshop area only.
To avoid damage, do not touch or dirty the display field.







Necessary preliminary tasks:
- Remove front storage compartment
- Remove centre console trim

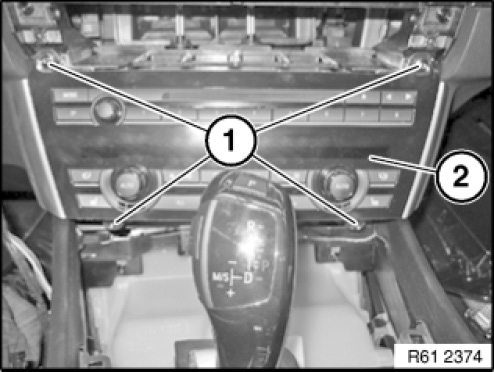

Release screws (1).
Remove radio and IHKA controls (2).
Unlock plug connections behind and disconnect.

IMPORTANT:
Assign keypad depending on optional equipment.







Replacement:
Carry out vehicle programming/encoding.
