Antenna Amplifier: Service and Repair

65 20 090 Removing And Installing/Renewing Aerial Amplifier (Aerial Diversity)







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
Remove trim for rear lid at top







Unlock and disconnect all plug connections.

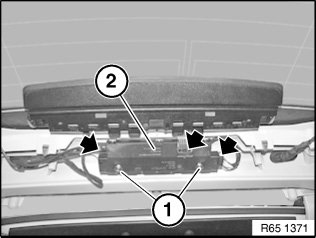

Release screws (1).

Tightening torque 65 20 1AZ.

Remove aerial amplifier (2).
