65 12 071 Removing and Installing/Replacing Amplifier

65 12 071 Removing And Installing/replacing Amplifier







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







NOTE: Comply with notes and instructions on handling optical fibres.







Necessary preliminary tasks:
- Clamp off battery negative lead.
- Remove top trim from tail panel.

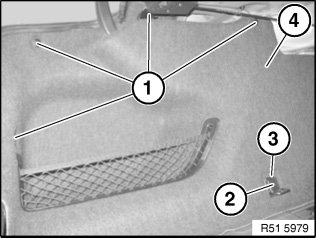

Lever out expansion rivets (1).
Release screw (2). Remove lashing eye (3).
Carefully press luggage compartment wheel arch trim (4) to one side.

Installation:
Make sure luggage compartment wheel arch panel (4) and rubber seal are correctly seated.







Pull off wiring harness guide (1) in an upward direction.
Lever out expanding rivet (1).

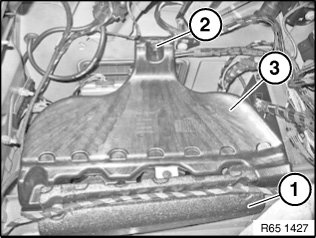

Remove wheel arch support (3) by lifting upwards.







Release screw (1).

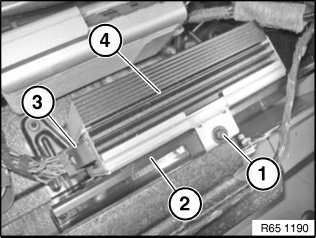

Remove amplifier (4) including holder (2).
Unfasten plug connections (3) and disconnect.

Replacement:
Remove amplifier (4) including holder (2).







Installation:

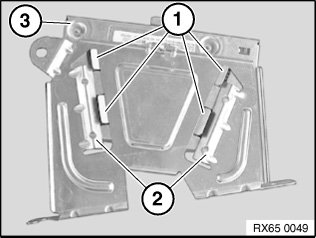

Lugs (1) must be correctly slid into guide (2).
Check that amplifier (3) is securely seated.







Replacement:
Carry out vehicle programming and encoding.
