72 11 297 Removing and Installing/Replacing Rear Centre Lower Strap Fitting

72 11 297 Removing And Installing/replacing Rear Centre Lower Strap Fitting







Necessary preliminary tasks:
- Remove seat backrest frame

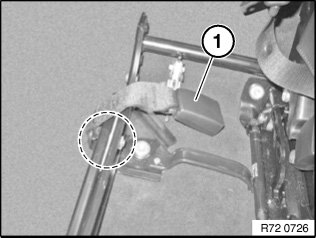

Release bolt in marked area from underneath.

Tightening torque 72 11 22AZ .

Installation:
Lower strap fitting (1) is encoded to prevent incorrect installation.
