11 61 365 Replacing Left Charge-Air Duct

11 61 365 Removing and installing/replacing front left charge air duct (N55)





Necessary preliminary work:
^ Remove intake duct
^ Remove front underbody protection





Release screw (1).

Tightening torque 17 10 4AZ.

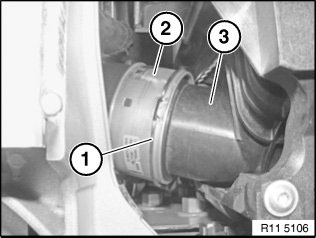

Unlock snap fastener (1).

Detach charge air duct (2) from charge air cooler connection (3).





Installation:
The seal inside the snap fastener must be coated with anti-friction agent.

Charge air duct (2) must snap audibly into place!

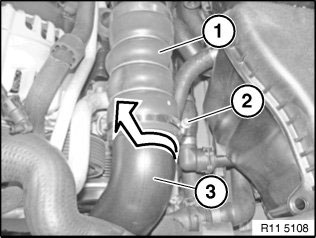

Unfasten hose clip (2).

Tightening torque 11 61 3AZ.

Release charge air duct (3) from gaiter (1).

Note:
Remove charge air duct (3) in upward direction by simultaneously turning anti-clockwise (see direction of arrow).





Assemble engine.
