62 30 517 Adjusting Head-Up Display

62 30 517 Adjusting Head-Up Display







NOTE: Vehicles with head-up displays are fitted with special wind-screens.

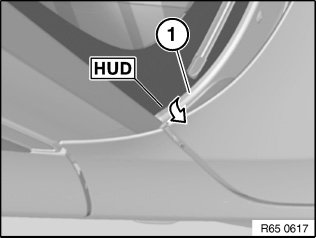

These windscreens are marked with the letters "HUD" on the outside at the bottom right below the seal (1).

Prior to adjustment, fold seal (1) back and make sure that a correct windscreen is fitted.







Connect vehicle to BMW diagnosis system.

Select service function under following path:
- Service function
- Body
- Head-Up Display
- Adjusting head-up display







NOTE: The geometric representation of the head-up display can be adjusted with the service function.
