64 11 794 Removing and Installing/Renewing Controller For Rear Cabin Fan



64 11 794 Removing And Installing/Replacing Controller For Rear Cabin Fan







Necessary preliminary tasks:
- Remove complete centre console

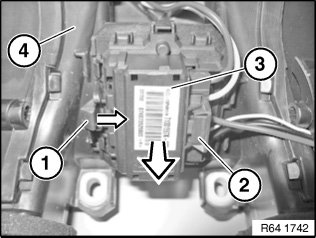

Unlock catch (1) and at same time slide controller (3) in direction of arrow in downward direction.

Remove controller (3) from rear cabin fan housing (4).

Unfasten plug connection (2) and disconnect.
