64 11 823 Replacing Servodrive For Right Rear Cabin Air Blending Flap

64 11 823 Replacing Servodrive For Right Rear Cabin Air Blending Flap







Necessary preliminary tasks:
- Remove right glovebox with housing

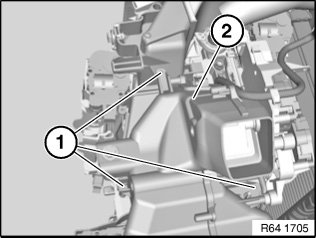

Position of actuator drive:
Overview of actuator drives on heater/air conditioner

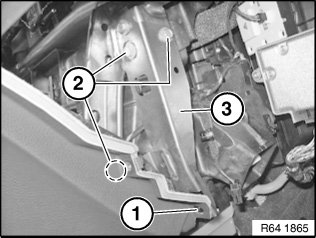

Release screw (1).

Unfasten screws (2).

Installation:
Replace screws (2).

Take off holder (3).

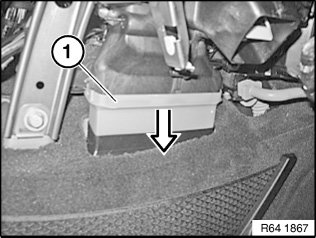

Unclip connector piece (1) and slide downwards.

Installation:
Latching of connector piece (1) must be felt.

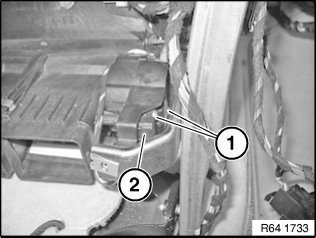

Release screws (1).

Remove air vent duct (2).

Installation:
Ensure cable routing along air vent duct (2) is correct







Release screws (1).

Remove servodrive (2) and unlock and disconnect associated plug connection.







Replacement:
Servomotors must be re-addressed in the event of replacement.
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors
