Replacing Left Engine Support Arm

22 11 110 Replacing left engine support arm (N55)





Necessary preliminary work:
- Secure engine in installation position
- Remove rear underbody protection
- Remove left cover
- Remove rear left charge air duct

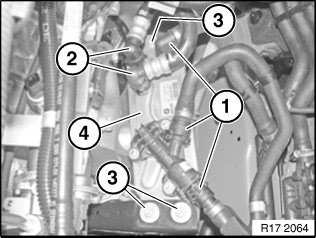

Release screws (3).

Place heat exchanger (4) to one side.

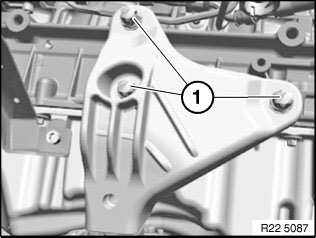

Release screws (1).

Remove engine support arm.

Tightening torque 22 11 3AZ.
