Replacing Left Engine Mount

22 11 011 Replacing left engine mount (N55)





Necessary preliminary work:
^ Secure engine in installation position
^ Remove rear underbody protection
^ Release engine support arm

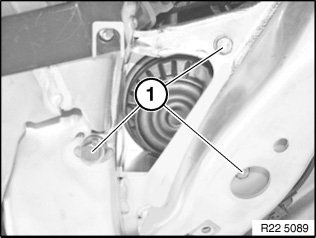

Release screws (1) and remove engine mount.

Tightening torque 22 11 1AZ.

Installation Note:

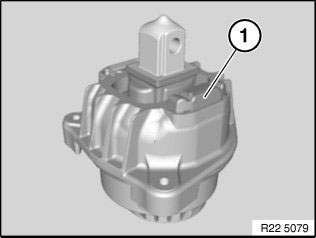

Rubber section (1) of engine mount must point to middle of vehicle.

V°J:
