51 47 030 Removing and Installing/Replacing Rear Left or Right Entrance Cover Strip (Inside)

51 47 030 Removing And Installing/Replacing Rear Left Or Right Entrance Cover Strip (Inside)







Special tools required:
- 00 9 325

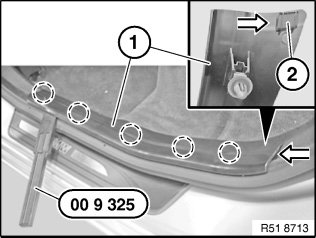

Carefully pry off entrance cover trim from front to back (1) with special tool 00 9 325 and remove by pulling forward.

Installation:
Correctly hook entrance cover strip (1) into wheel arch-luggage compartment trim panel with retaining tab (2).







Installation:

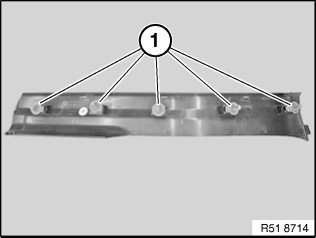

Replace faulty clips (1).

Replacement
Modify clips (1).
