41 61 050 Removing and Installing/Replacing Left or Right Hinge For Engine Compartment Lid (Engine Compartment Lid Removed)
41 61 050 Removing And Installing/Replacing Left Or Right Hinge For Engine Compartment Lid (Engine Compartment Lid Removed)
WARNING: Support engine compartment lid in fully opened position with suitable apparatus. Risk of injury.
For stripping and rigging operations, refer to texts on KSD CD (job number 41 61 050).

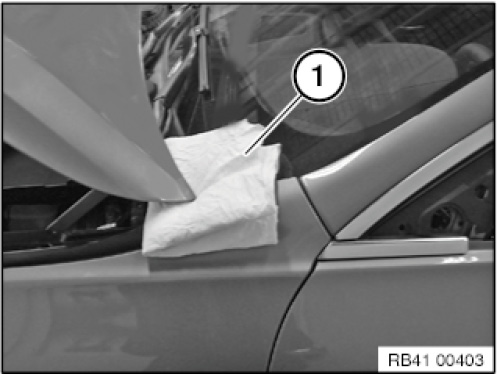

Position suitable cloth under engine compartment lid without gaps.
IMPORTANT: After nuts have been slackened no lateral forces must be exerted on the engine compartment lid.

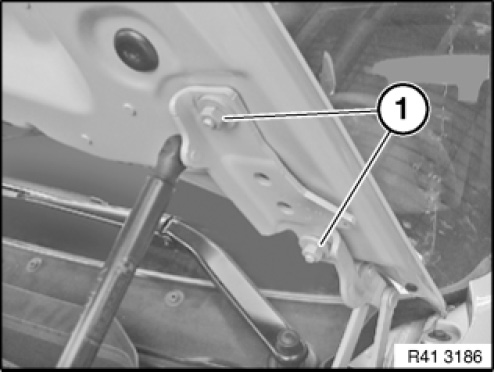

Unscrew nuts (1).
Tightening torque 41 61 1AZ.
Remove gas pressure spring

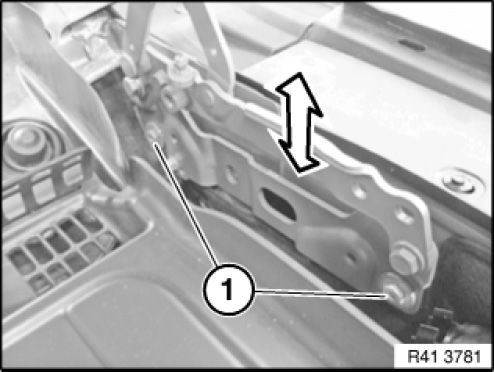

Release screws (1) and remove hinge.
Installation note:
Tightening torque 41 61 3AZ.
Adjust hinge together with engine compartment lid.
