65 50 ... Removing and Installing/Replacing Friction Hinges For Rear Cabin Monitor

65 50 ... Removing And Installing/Replacing Friction Hinges For Rear Cabin Monitor







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection)







Necessary preliminary tasks:
- Remove rear cabin monitor







Release screws (1).

Tightening torque 65 50 1AZ.

Remove cover (3) from rear cabin monitor (4), unclipping plug (2) and feed out cable.

Installation:
Make sure cover (3) is correctly seated on rear cabin monitor (4).







Unfasten screws (2).

Tightening torque 65 50 2AZ.

Remove friction hinges (1) from rear cabin monitor (3).

Installation:

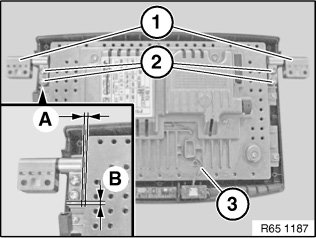

Observe gap dimension adjustment when screwing friction hinges (2) to rear cabin monitor (3) on left and right.

Gap dimensions:

A. 0.9 mm
B. 1.5 mm
