65 11 075 Removing and Installing/Replacing DVD Changer

65 11 075 Removing And Installing/Replacing DVD Changer







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







NOTE: Comply with notes and instructions on handling optical fibres.







Necessary preliminary tasks:
- Clamp off battery negative lead







Open glove box.

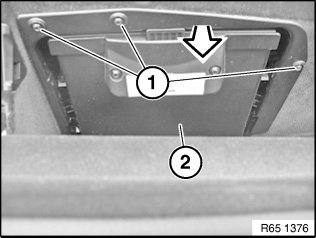

Release screws (1).

Remove bracket for DVD changer (2) downward.







Installation:

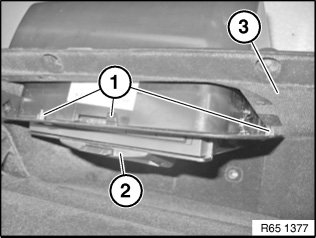

Make sure bracket of DVD changer (1) is correctly seated in glove compartment (3).

Guide lugs (1) must fit correctly in the corresponding recesses.

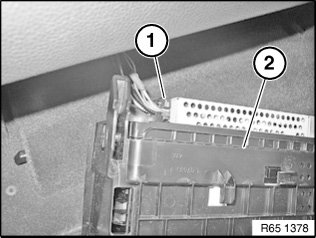

Unfasten plug connection (1) and disconnect.

Remove bracket (2) with DVD changer.







Replacement:

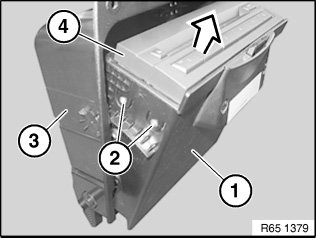

Open fold-down compartment (1).

Release left and right screws (2).

Pull DVD changer (4) in direction of arrow out of bracket (3).







Replacement:
Carry out vehicle programming/encoding.
