61 31 041 Removing and Installing Operating Element For Driver Assistance System

61 31 041 Removing And Installing Operating Element For Driver Assistance System







Special tools required:
- 00 9 317







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
- Remove decorative strip on instrument panel on left

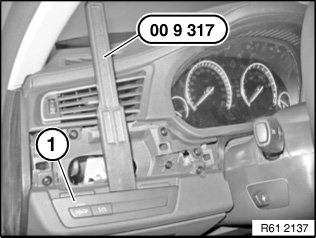

Carefully lever driver assist system (1) out with special tool 00 9 317.

Disconnect plug connection behind and remove driver assistance system (1).

Installation:
Make sure driver assistance system (1) is correctly seated.
