Rear Vision Camera: Service and Repair

66 53 020 Removing And Installing (replacing) Reversing Camera







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary tasks:
- Remove handle

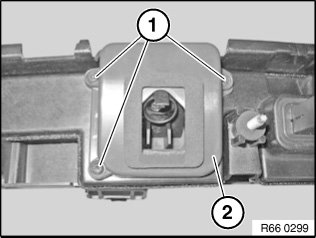

Release screws (1).

Remove cover cap (2).

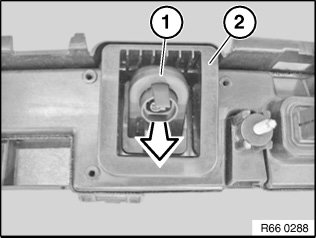

Remove rear view camera (1) in direction of arrow from retaining fixture (2).

Replacement:
Remove protective film from lens of reversing camera (1).







Installation note:

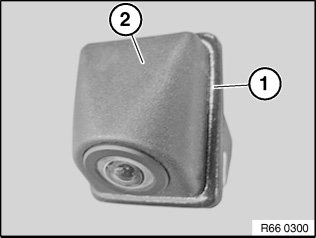

Seal (1) on rear view camera (2) must not be damaged.







After installation:
- Calibrate reversing camera







Replacement:
Carry out vehicle programming/encoding
