65 20 165 Removing and Installing/Replacing Left TV Aerial

65 20 165 Removing And Installing/Replacing Left TV Aerial







Necessary preliminary tasks:
- Remove rear bumper trim

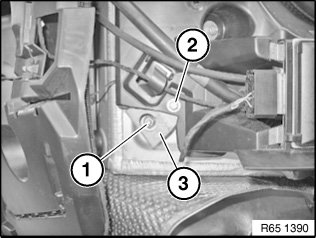

Release nut (1) and screw (2).

Remove retaining bracket (3) and TV aerial underneath.

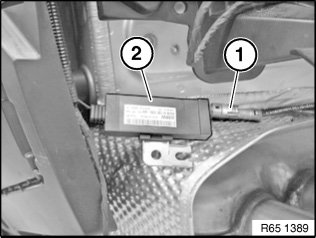

Unlock plug connection (1) on TV aerial (2) and disconnect.

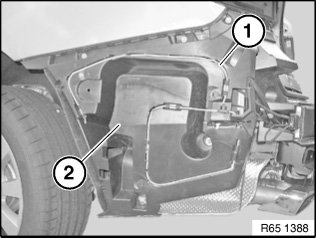

Remove TV aerial (1) from bumper guide (2).

Release screw (3).

Remove TV aerial (1).

Installation:
Make sure TV aerial (1) is correctly laid.
