51 12 828 Removing and Installing/Replacing Guide For Rear Left or Right Bumper

51 12 828 - Removing and installing/replacing left or right guide for rear bumper





Necessary preliminary tasks:
- Remove rear bumper trim

Note:
The operation is described on the left side; proceed in the same way for the right side.

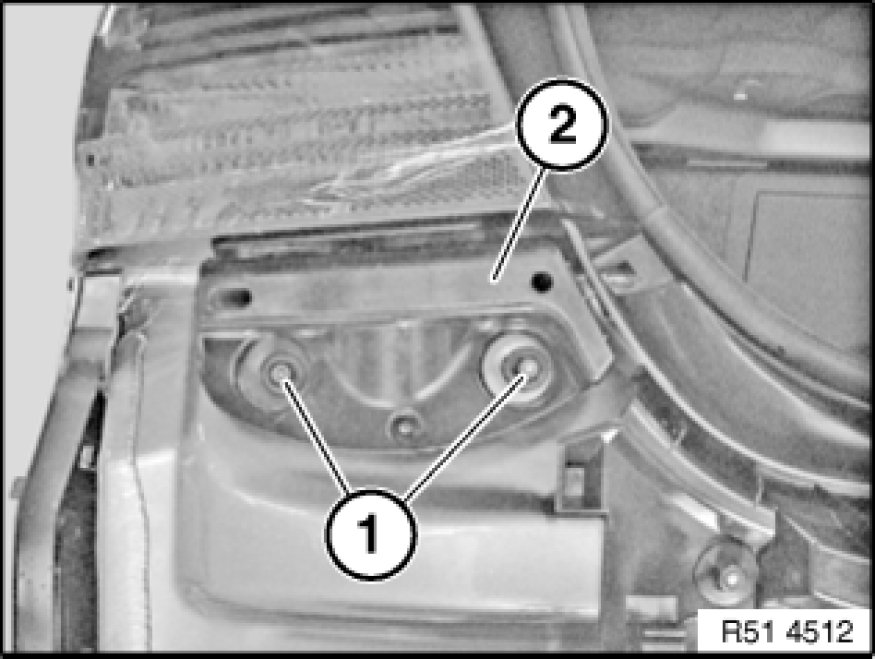

Unscrew nuts (1).
Remove guide (2).






Installation:

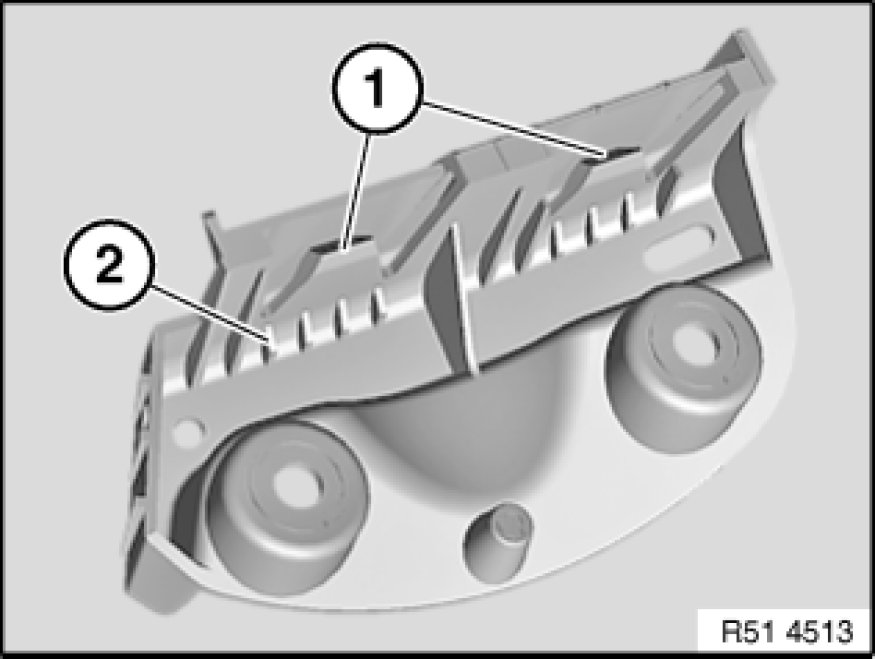

Catches (1) on holder (2) must not be damaged or missing.
