61 61 ... Adjusting Left or Right Windscreen Wiper

61 61 ... Adjusting Left Or Right Windscreen Wiper

Special tools required:

Correctly adjusting the contact angle of the wiper arms on the windscreen increases wiping quality. For adjustment, refer to the vehicle-specific repair instruction.

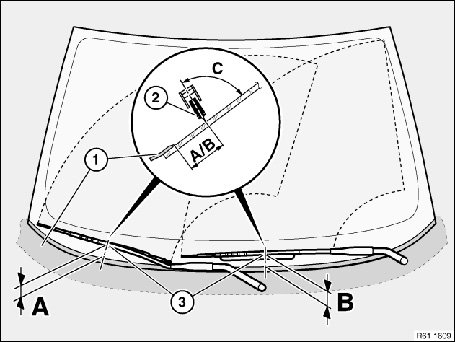

A/B = Distance between windscreen wiper blade (2) and trim panel on cowl panel (1)

NOTE: Measurement is taken at the height of the locators (3) for the windscreen wiper arms

C = Contact angle between wiper blade centre plane and windscreen

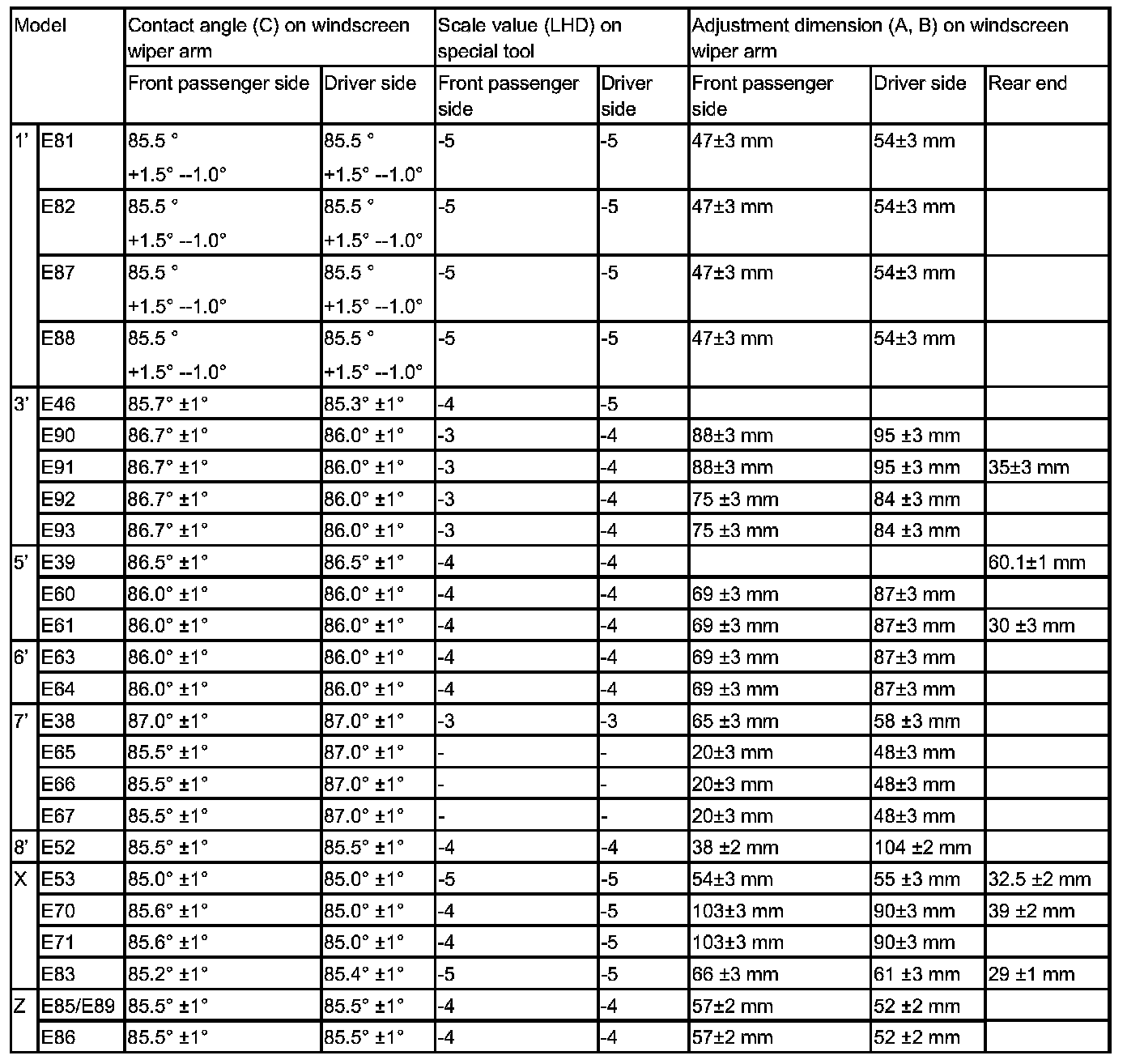

When adjusting with special tool 61 6 100, set the scale value in accordance with the following table.

For RHD vehicles, change the preceding sign of the scale values.
- LHD cars, scale range 0 to --10
- RHD cars, scale range 0 to +10
