Windshield Washer Pump: Service and Repair

61 71 100 Removing and installing/replacing windscreen washer pump







- Before replacing the windscreen washer pump, check the fluid reservoir for dirt contamination and clean if necessary.







Necessary preliminary tasks:
- Release fluid reservoir for windscreen washer system and pull out







NOTE: Catch any escaping washer fluid if necessary.

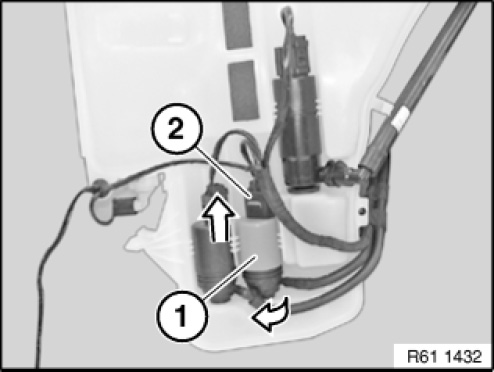

Disconnect plug connection (2).
Detach hose from windscreen washer pump (1).
Twist windscreen washer pump (1) and remove from fluid reservoir for windscreen washer system in direction of arrow.







Installation note:
- Replace strainer for windscreen washer pump
- Coat sealing ring of windscreen washer pump with lubricant
- Lay hose pipe of windscreen washer pump without kinks
- Fill fluid reservoir
