Removing and Installing/Replacing Cover for Headlight Washer System on Left

51 11 ... - Removing and installing/replacing cover for headlight washer system on left





Special tools required:






Important!
Risk of damage!

Cover for headlight washer system is spring-mounted.

Pulling out the cover too quickly or with excessive force may cause the springs to be overelongated.

If the springs are overelongated, the cover for the headlight washer system may rattle on the bumper.

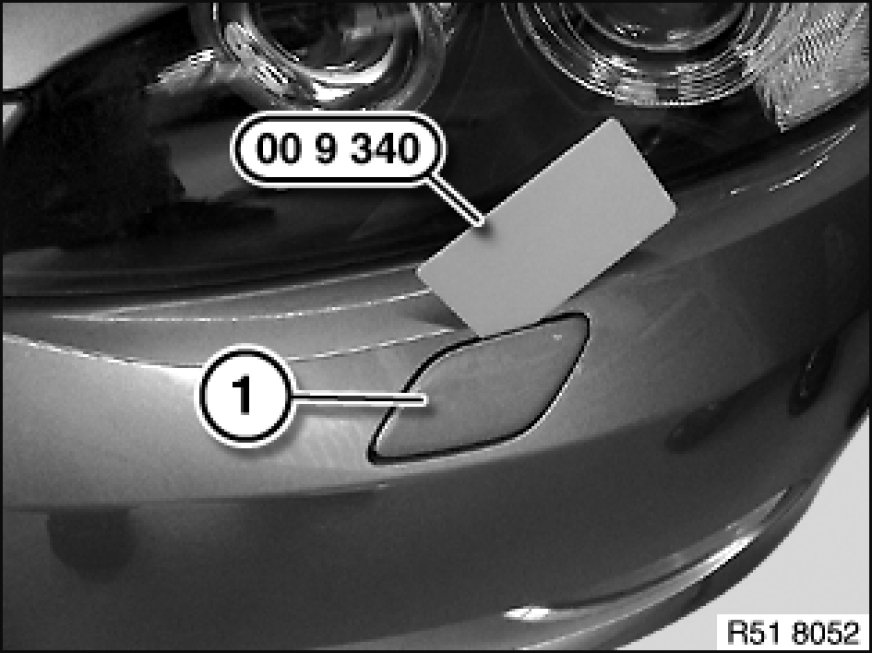

Lever out cover (1) with special tool 00 9 340.

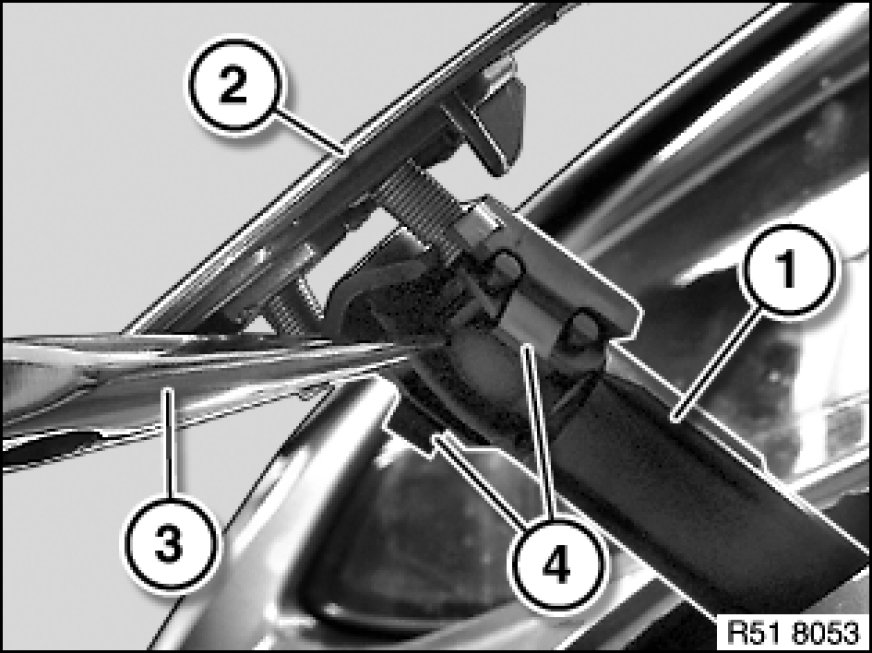

Slowly pull out spray nozzle (1) from cover (2) until nozzle (1) can be gripped with pliers (3), grip nozzle (1) by rib and pull out.

Release catches (4) and remove cover (2).

Allow nozzle (1) to slide back slowly.

Installation Note:
To pull out nozzle (1), position pliers (3) on rib only (see picture).





Installation Note:

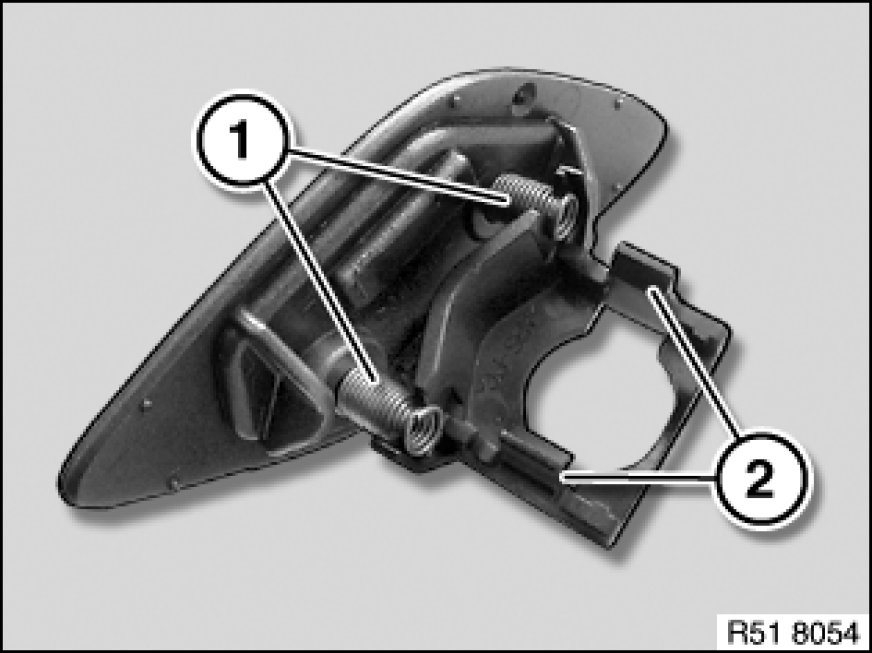

Springs (1) must not be overelongated.

Catches (2) must not be damaged
