Removing and Installing/Replacing Rubber Frame for Windscreen

51 31 021 - Removing and installing/replacing rubber frame for windscreen





Important!

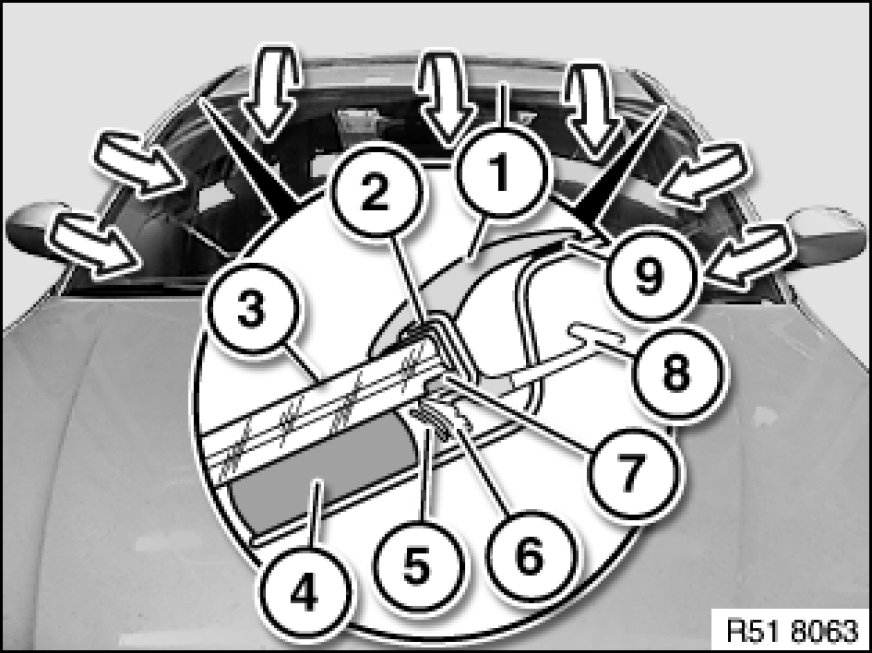

Rubber frame (1) features an aluminium section inlay (2).
Detach adhesive tape (9) between rubber frame (1) and roof outer skin or A-pillar.
Carefully unwind rubber frame (1) (windscreen breakage).

Note:
Tear-off lip (5) may be stuck to adhesive (4).
When rubber frame (1) is removed, tear-off lip (5) can tear off and remain in vehicle.

3 - Windscreen
6 - Bridge
7 - Pinched butyl
8 - Sealing lip fitted at side only
9 - Adhesive tape

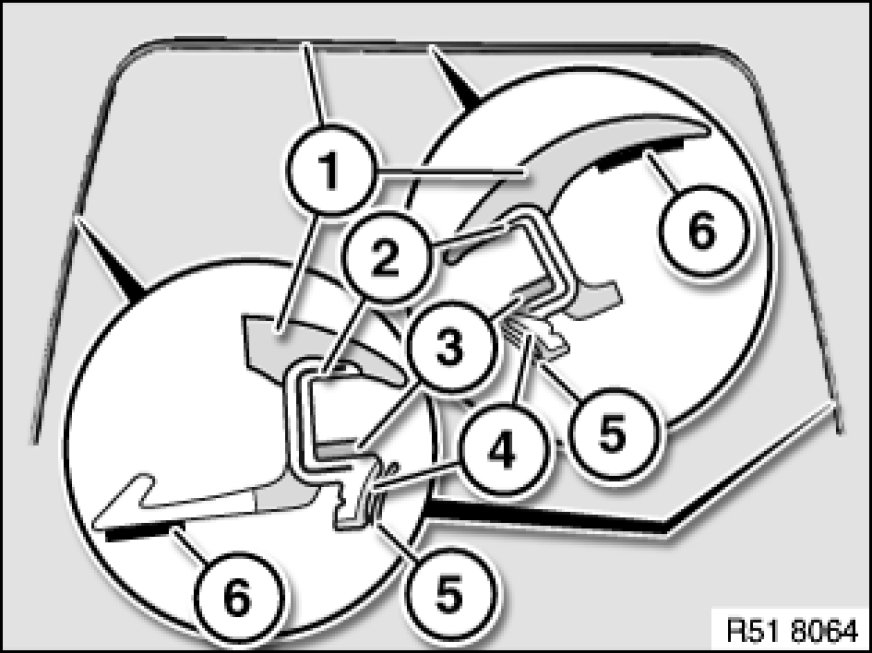

Replacement of rubber frame without windscreen removal:
Clean cutout.
Detach tear-off lip (5) from rubber frame (1).
If adhesive leaks over tear-off lip (5) at bridge (4), this area must be cut out partially.
To facilitate installation, coat rubber frame (1) and body cutout with water.
Fit rubber frame (1), paying attention to centre marking on rubber frame (1) and windscreen.
If necessary, pull liner* off adhesive tape (6) and press rubber frame (1) down firmly on roof outer skin and A-pillar.
*Liner is the protective film on the adhesive tape





Replacement of rubber frame with removed or new windscreen:
Pay attention to centre marking on rubber frame (1) and windscreen.
Fit rubber frame (1) with tear-off lip (5).
2 - Aluminium strip
3 - Butyl
After installing windscreen, pull liner* off adhesive tape (6) and press rubber frame (1) down firmly on roof outer skin and A-pillar.
*Liner is the protective film on the adhesive tape
