51 21 301 Removing and Installing/Replacing Window Cavity Cover Strip on Outside of Front Door

51 21 301 - Removing and installing/replacing window cavity cover strip on outside of front door





Special tools required:






Important!
The "Instructions on fitting window guides" serve as the basis for this repair instruction and must be observed without fail.





Necessary preliminary tasks:
- Remove mirror on front door Removing and Installing/Replacing Mirror on Left or Right Front Door

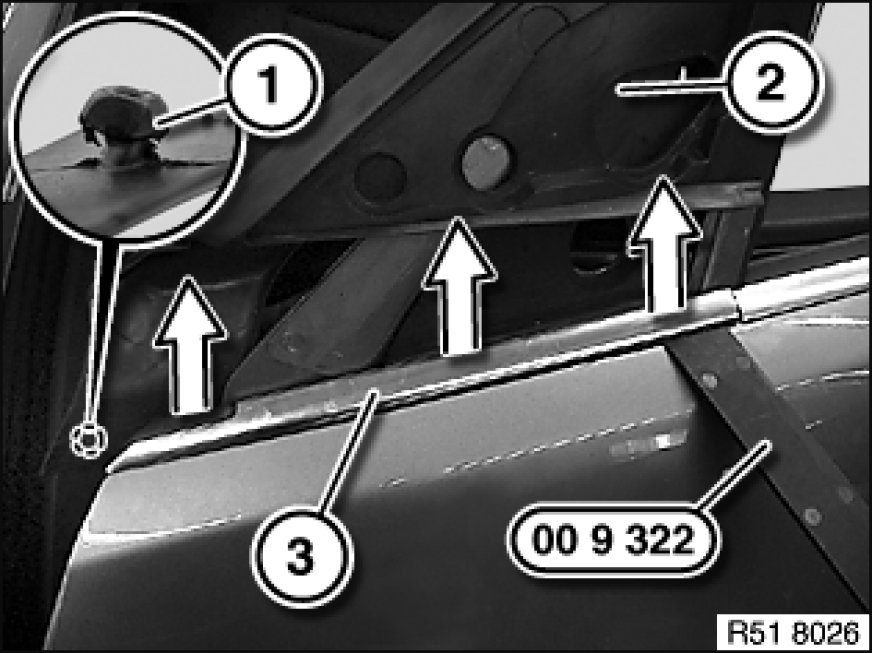

Pop catch (1) out of window guide (2) of door.

Pull window guide (2) approx. 30 mm upwards.

Carefully lever window cavity cover strip (3) with special tool 00 9 322 out of door.

Installation Note:
Catch (1) must not be damaged.

Moisten window cavity cover strip (3) prior to fitting with approved anti-friction agent.

Window cavity cover strip (3) must be flush at front to door.
