25 11 041 Replacing Bearing Shell for Shift Lever




25 11 041 - Replacing bearing shell for shift lever





Necessary preliminary tasks:
- Remove shift lever 25 11 000 Removing and Installing Shift Lever

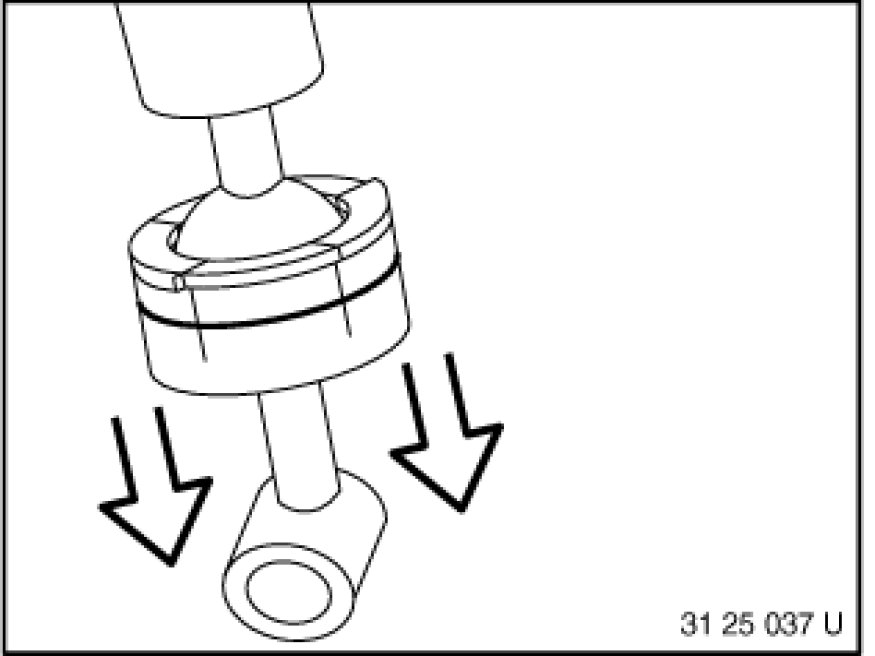

Detach mount from selector lever.

Installation Note:
Grease ball joint.
