Shifter ASMT: Service and Repair

25 12 060 - Replacing shift lever knob for twin clutch transmission

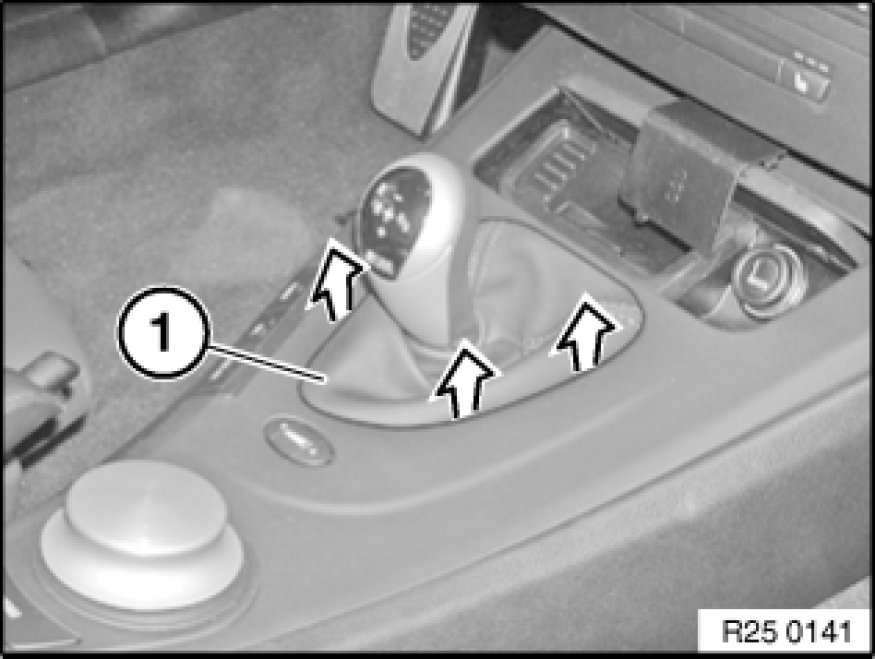

Press installation frame of gaiter (1) a little from front to rear and release gaiter from centre console.






Note:
Do not twist shift lever knob during removal as this would cause the turning lock in the knob to shear off.

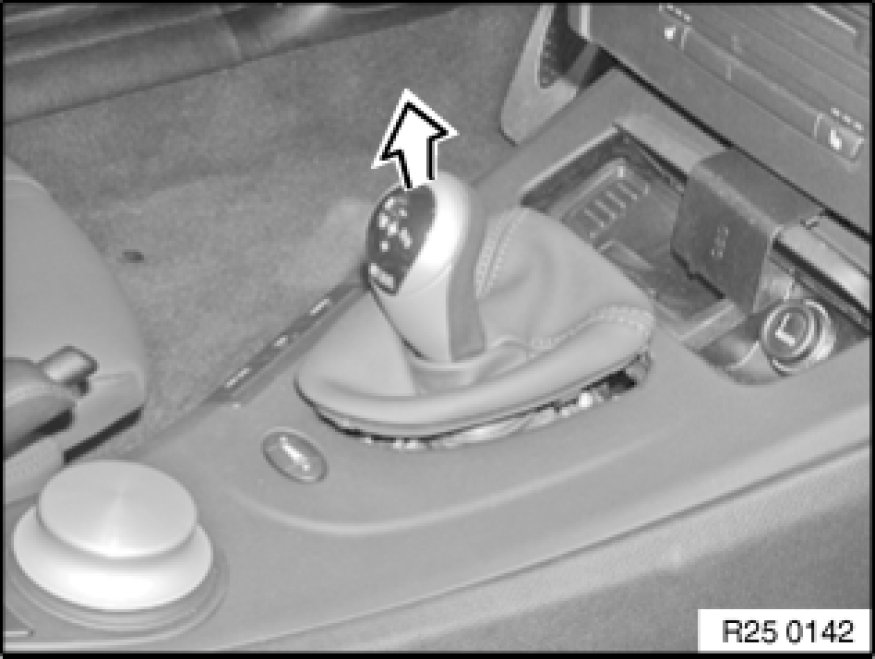

Tug firmly to remove knob.

Installation:
Fit shift lever knob on shift lever, align and press on until it snaps noticeably into place.

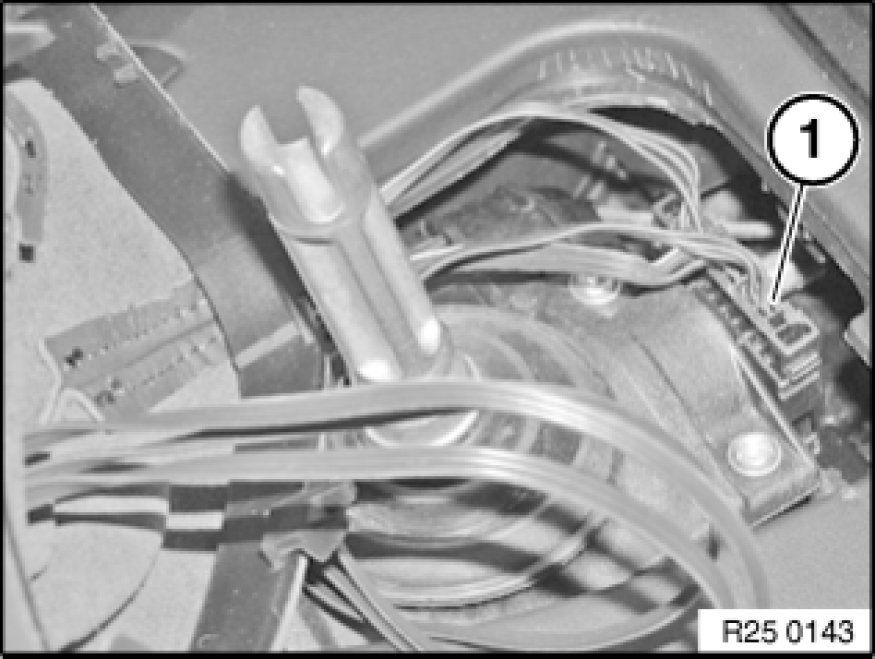

Disconnect connector (1).

Installation:
Note installation position of cables.
