Procedures

28 60 ... - Notes on mechatronics (GS7D36SG)





Special tools required:
- 24 2 390






Important!
After completing work:

- Load specific data version with DIS
- Check transmission fluid level Service and Repair
Use only approved transmission fluid.
Failure to comply with this instruction will result in serious damage to the twin clutch transmission.





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).

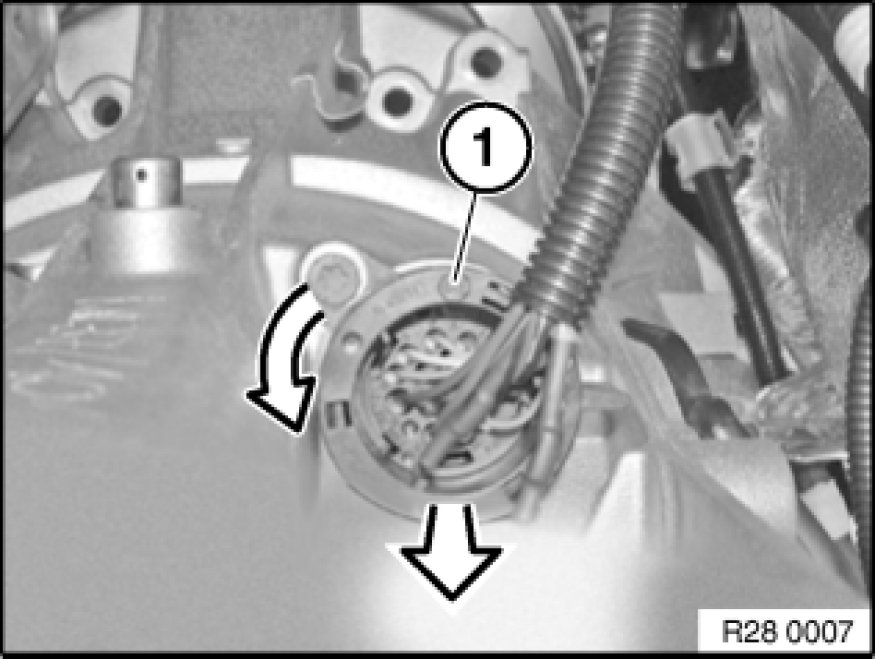

Unscrew plug (1) and disconnect.

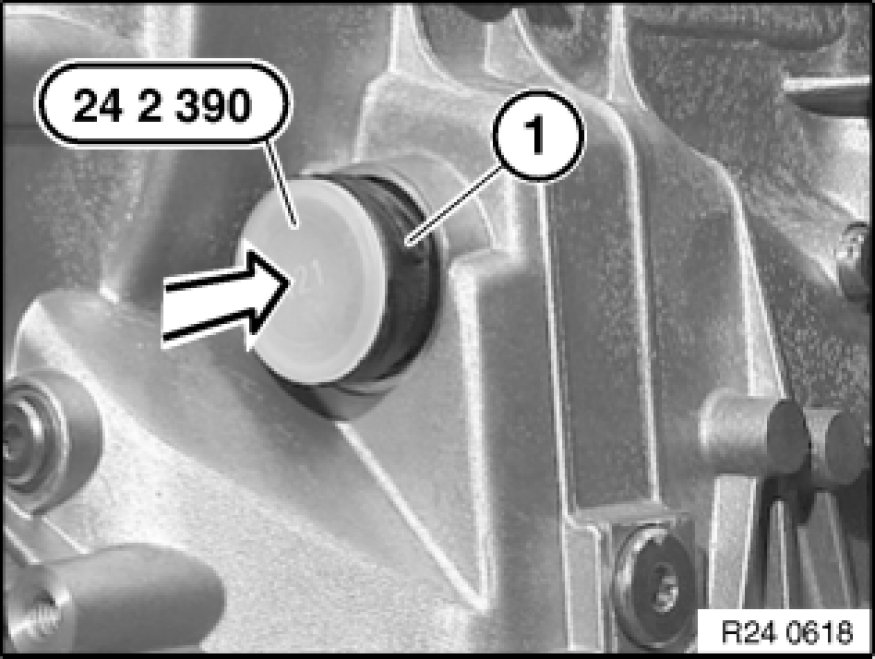

Insert special tool 24 2 390 in sealing sleeve (1).
