28 00 060 Replacing Output Flange Radial Shaft Seal (GS7D36SG)

28 00 060 Replacing Output Flange Radial Shaft Seal (GS7D36SG)

Special tools required:







IMPORTANT:
It is essential to adhere to conditions of absolute cleanliness.
Any dirty parts must be cleaned before the hydraulic cap is loosened.
After completion of work, check gearbox oil level.
Use only the approved transmission oil
Failure to comply with this instruction will result in serious damage to the twin-clutch gearbox.







Necessary preliminary work:
- Remove underbody protection
- Remove reinforcement plate
- Remove heat shields
- Remove exhaust system
- Support transmission
- Remove transmission cross member.







- Unflange propeller shaft from transmission and tie to one side
- Tasks are described in Removing propeller shaft.

NOTE: To rotate propeller shaft, unlock parking lock.

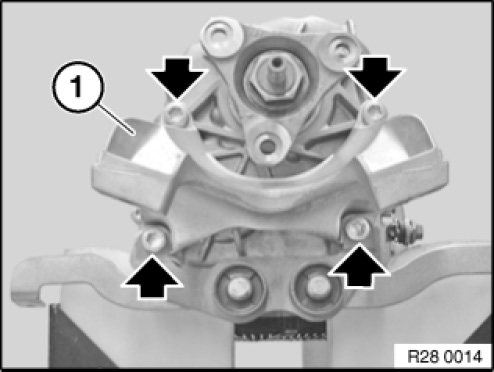

Release screws.
Remove transmission bearing block (1).
Tightening torque: 22 32 2AZ.

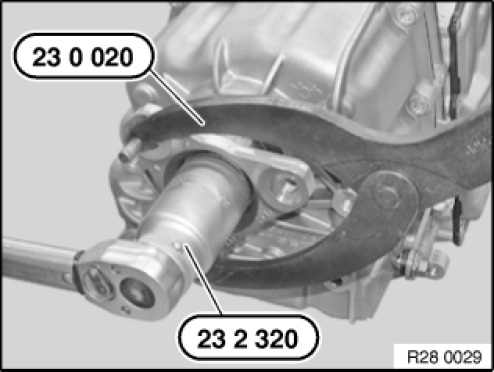

Grip output flange (1) with special tool 23 0 020.
Release nut with special tool 23 2 320.

Tightening torque: 28 10 14AZ.

Installation note:
Replace nut and secure with Loctite 243.

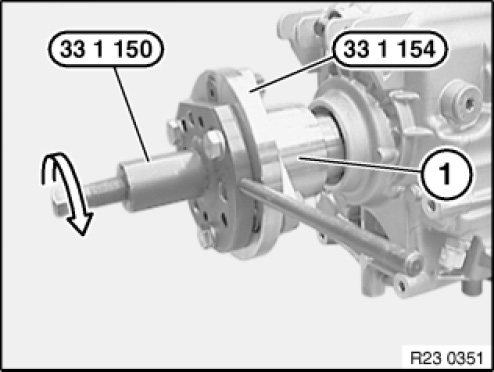

Detach output flange (1) with special tool 33 1 150 and adapter plate 33 1 154 from output shaft.

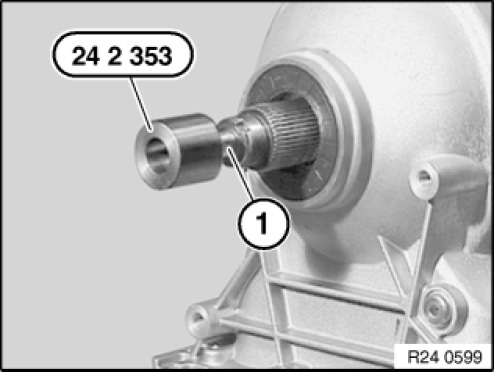

Attach special tool 24 2 353 to output shaft (1).
Graphic shows: Automatic transmission

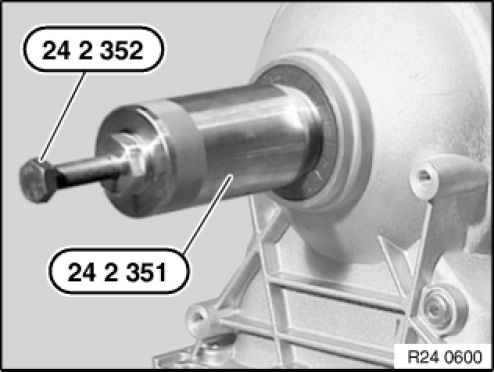

Screw in special tool 24 2 351 until it is firmly connected with radial shaft seal.
Pull out radial shaft seal by screwing in special tool 24 2 352.
Graphic shows: Automatic transmission

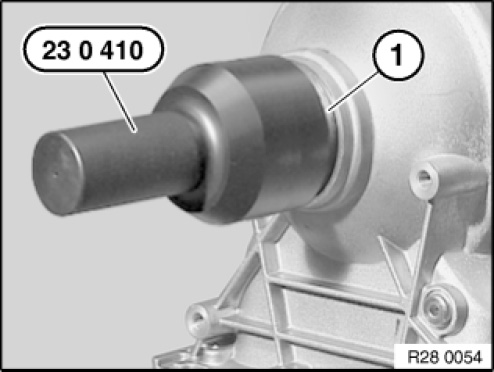

Oil sealing lip on radial shaft seal (1). Drive in radial shaft seal (1) with special tool 23 0 410 as far as it will go.
Graphic shows: Automatic transmission

�:
