Procedures

24 34 ... Notes On Mechatronics (GA6HP26Z/GA6HP32Z/GA6HP19Z)

Special tools required:







IMPORTANT:
After completing repair work:
- Load specific data status with DIS
- Check transmission oil level
Use only approved transmission oil.
Failure to comply with this requirement will result in serious damage to the automatic transmission.







IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection).

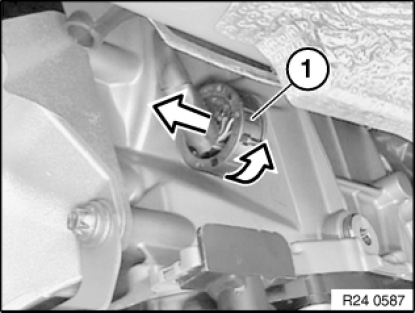

Unscrew connector (1) and disconnect.

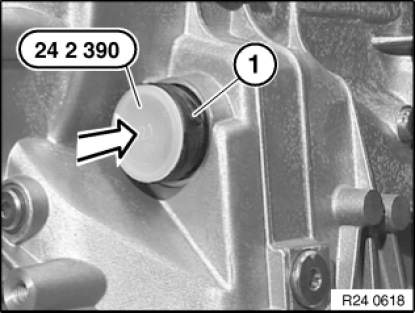

Insert special tool 24 2 390 in sealing sleeve (1).
