24 34 021 Replacing Sealing Sleeve For Transmission Housing (GA6HP19Z)

24 34 021 Replacing Sealing Sleeve For Transmission Housing (GA6HP19Z)

Special tools required:







IMPORTANT:
After completion of repair work, check transmission oil level.
Use only approved transmission oil.
Failure to comply with this requirement will result in serious damage to the automatic transmission.







Necessary preliminary tasks:
- Remove heat shields.
- Remove transmission cross member.
- Remove transmission oil sump.

IMPORTANT: Support transmission with workshop jack.







only M57T2

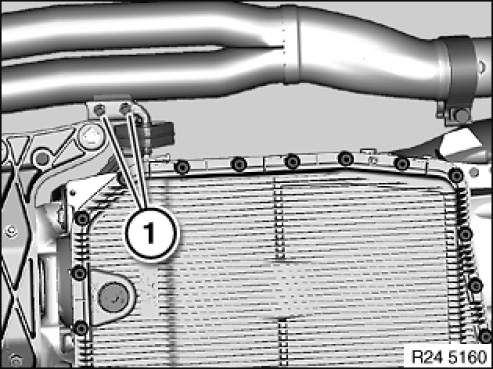

Release screws (1).

NOTE: Graphic similar.







only M57T2
Release screws (1).
Remove the exhaust bracket.

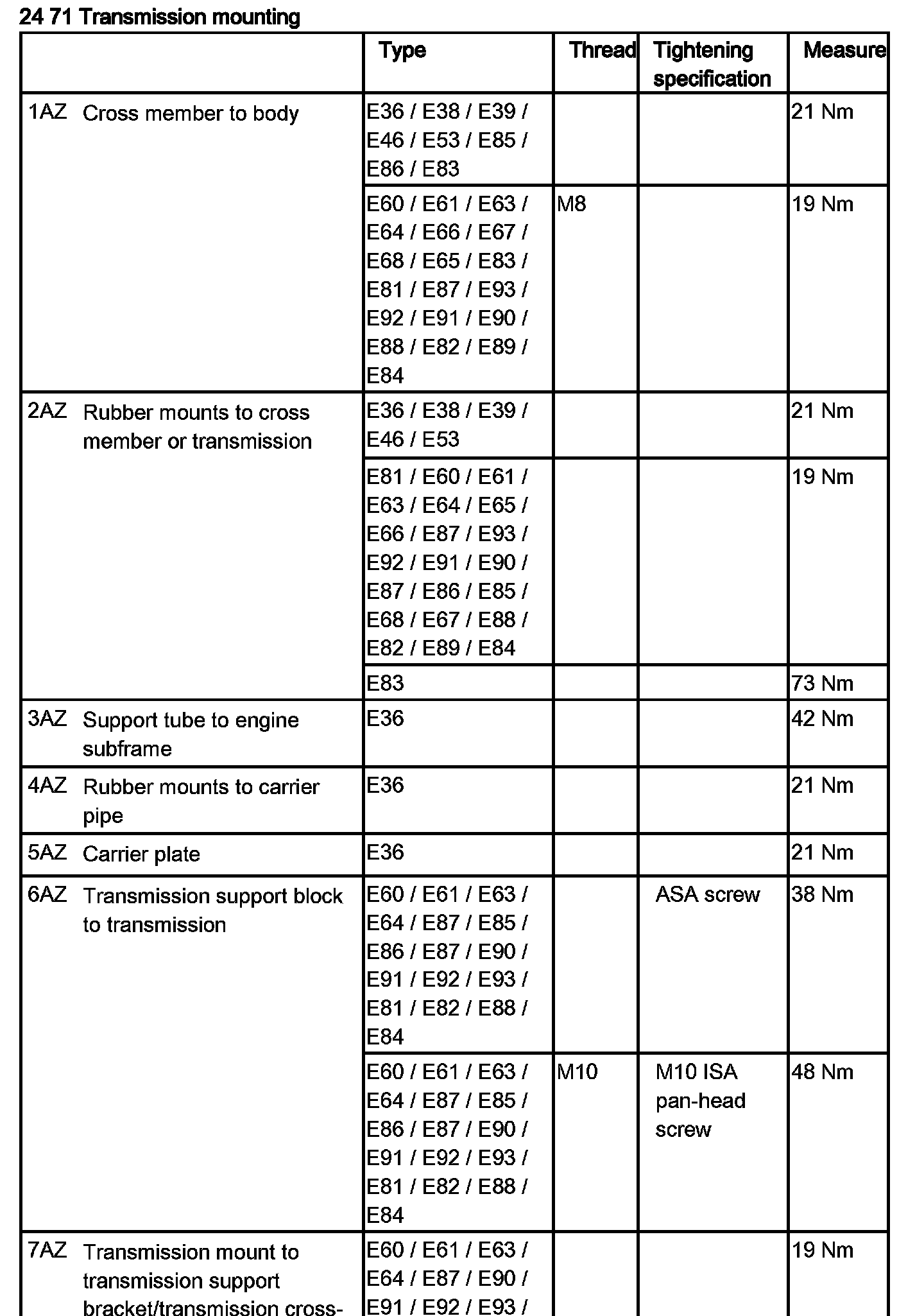

Tightening torque 24 71 6AZ.

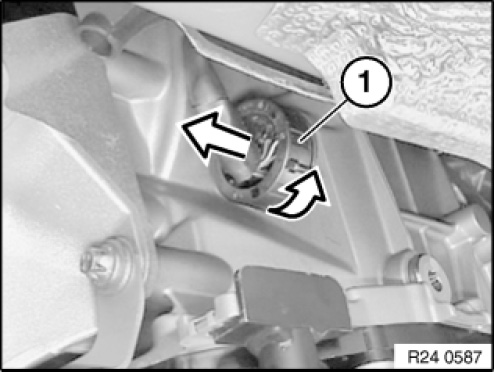

Unlock and disconnect connector (1) by turning.

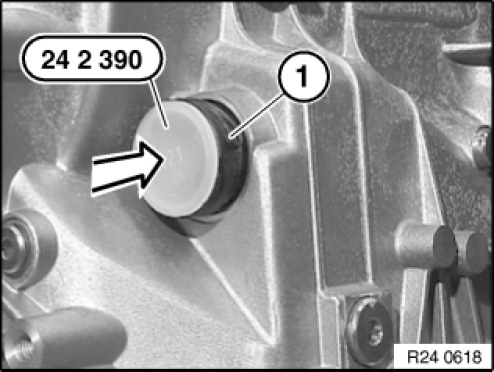

Insert special tool 24 2 390 in sealing sleeve (1).

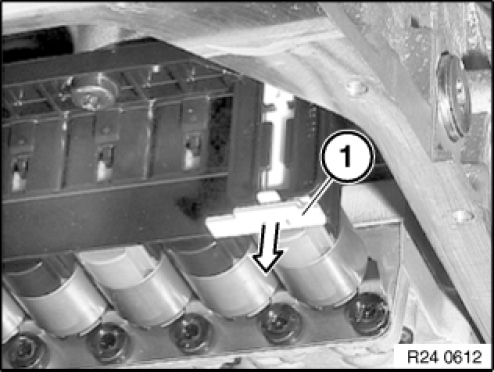

Unlock sealing sleeve with slide (1).







NOTE:
Note position of sealing cup.

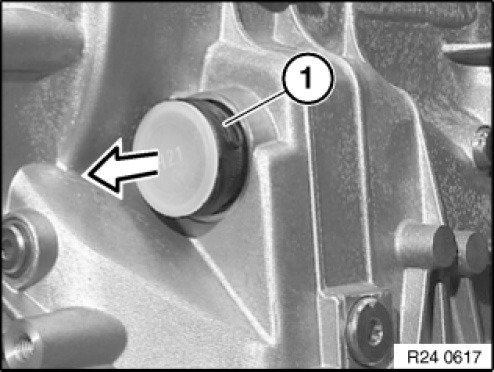

Pull out sealing cup (1)

Installation note:
Screw in sealing sleeve partially (lug in upper area). Turn until lug engages in groove of transmission. Slide in sealing cup.
Lug on sealing sleeve must not be damaged.

�,�:
