24 31 011 Replacing Torque Converter Shaft Seal (GA6HP19Z)

24 31 011 Replacing Torque Converter Shaft Seal (GA6HP19Z)

Special tools required:







Necessary preliminary tasks:
- Remove automatic transmission.







IMPORTANT:
After completion of repair work, check transmission oil level.
Use only approved transmission oil.
Failure to comply with this instruction will result in serious damage to the transmission.

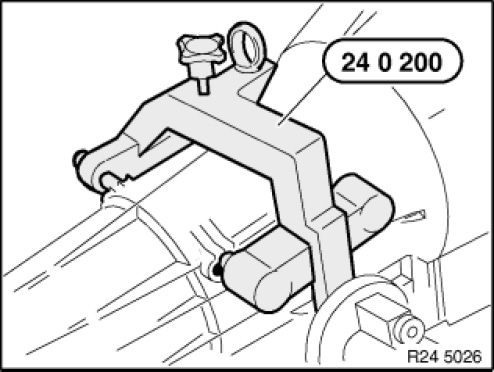

Secure transmission with special tool 24 0 200 on assembly stand 00 1 450.
Remove torque converter.

NOTE: Read and comply with installation note on transmission retaining bridge.

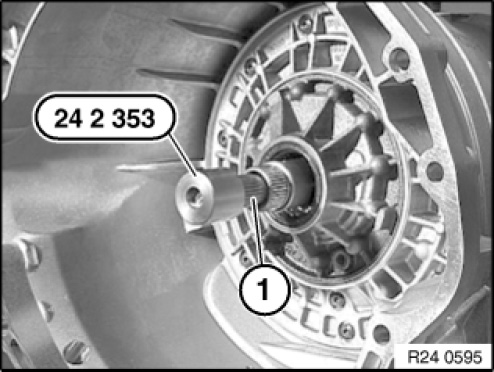

Attach special tool 24 2 353 to input shaft (1).

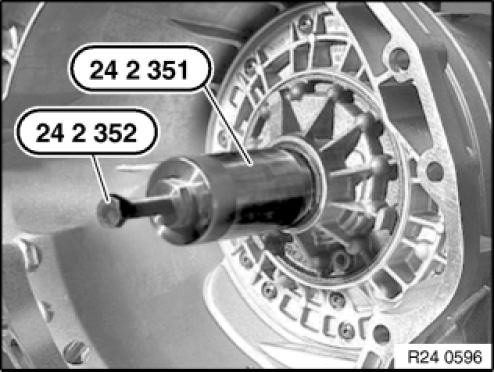

Screw in special tool 24 2 351 until it is firmly connected with radial shaft seal.
Screw in special tool 24 2 352 to remove radial shaft seal.







Oil sealing lip on shaft seal.

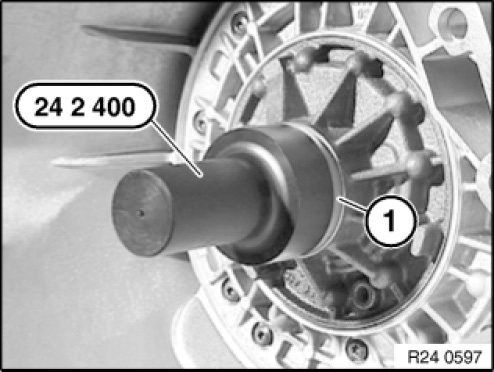

Drive in radial shaft seal (1) with special tool 24 2 400 as far as it will go.
