32 41 250 Removing and Installing/Replacing Fluid Reservoir For Power Steering

32 41 250 - Removing and installing/replacing fluid reservoir for power steering





Warning!
Danger of poisoning 00 .. ... Danger of Poisoning If Oil Is Ingested/Absorbed Through the Skin if oil is ingested/absorbed through the skin!
Risk of injury 00 .. ... Risk of Injury If Oil Comes Into Contact With Eyes and Skin if oil comes into contact with eyes and skin!

Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.





Recycling:
Catch and dispose of hydraulic fluid in a suitable container.
Observe country-specific waste-disposal regulations





Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
M57T2 335d:
- Unclip coolant hose on coolant expansion tank

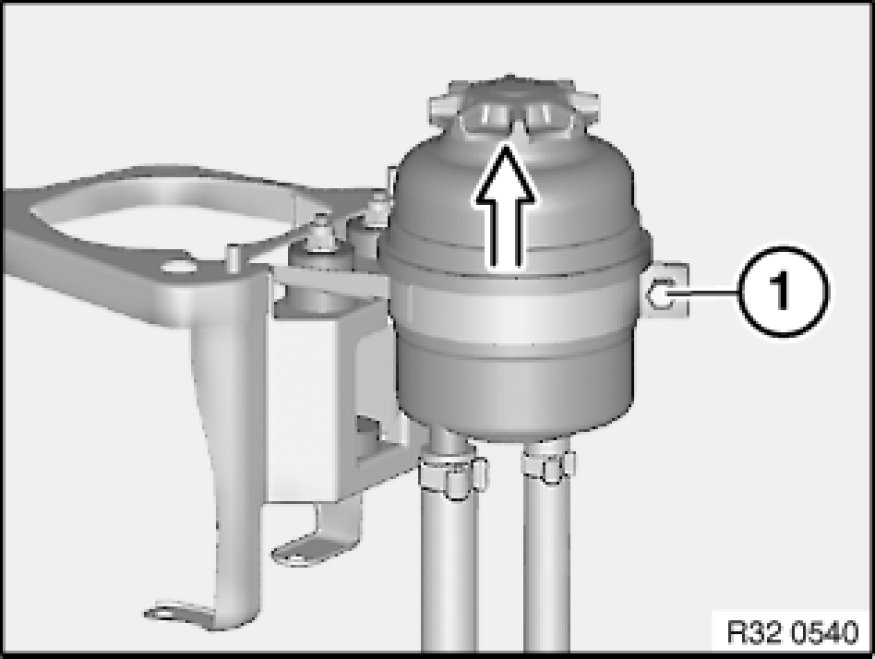

Release screw (1).
Tightening torque 32 41 1AZ [1][2]32 41 Pump and Oil Supply.

Note:
If necessary, raise and/or turn fluid reservoir in order to gain better access to hose clamps.

Unfasten hose clips.
Disconnect suction line and radiator return line from fluid reservoir.
Lift out fluid reservoir.

Installation Note:
Make sure hydraulic lines are laid without tension and with sufficient spacing to adjoining components.





After installation:
- Fill and bleed hydraulic system
- Check pipe connections for leaks
