37 14 511 Replacing Front Ride-Height Sensor

37 14 511 Replacing Front Ride Height Sensor







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

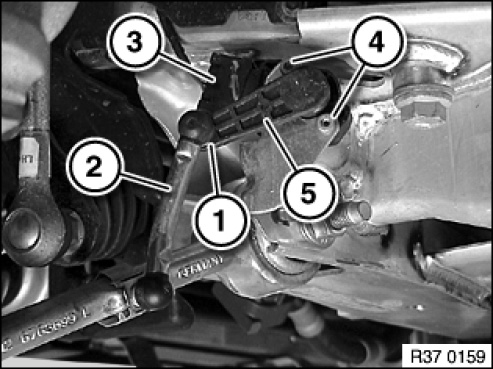

Release nut (1) and disconnect jointed rod (2).

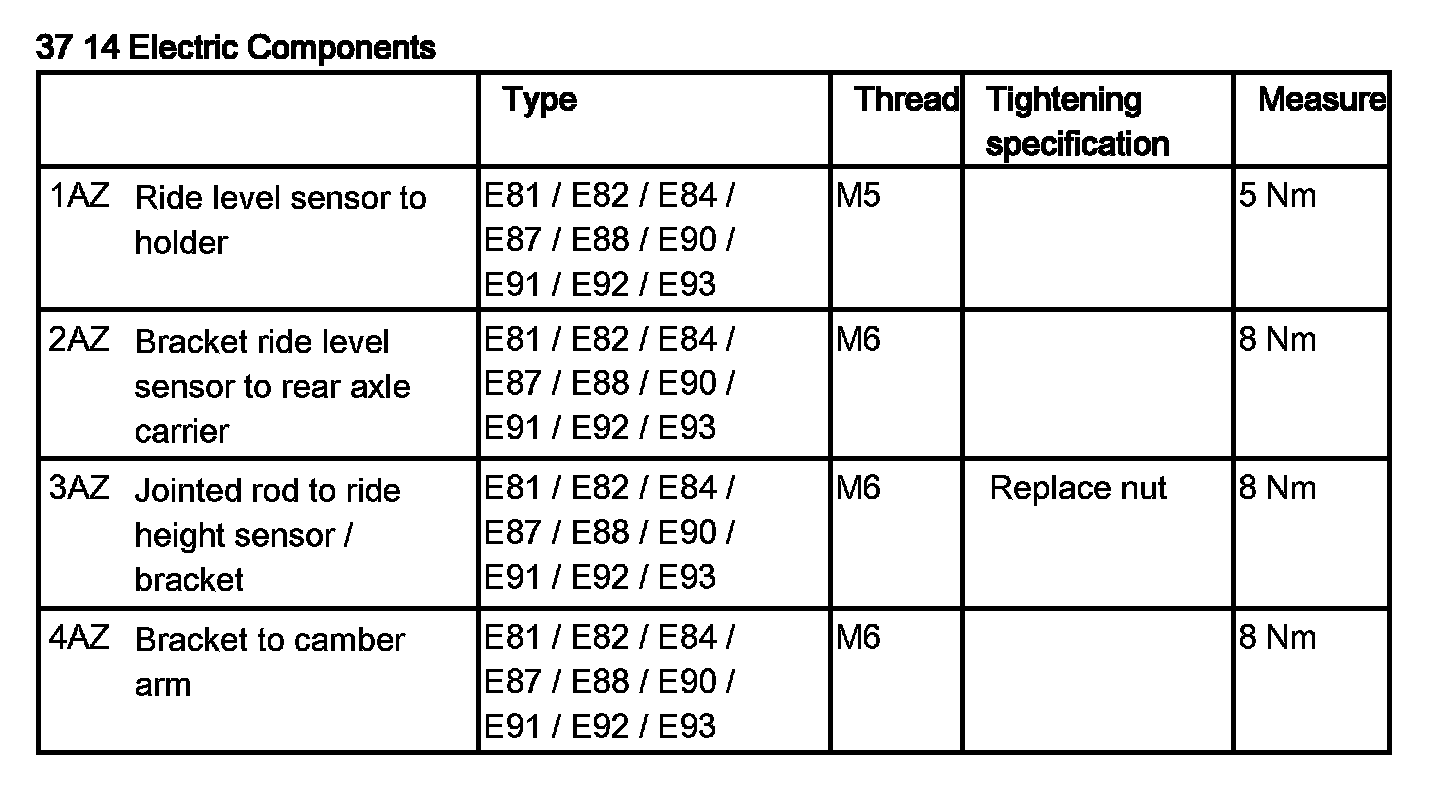

Tightening torque 37 14 3AZ.

Installation note:
Replace nut.

Release screws (4).

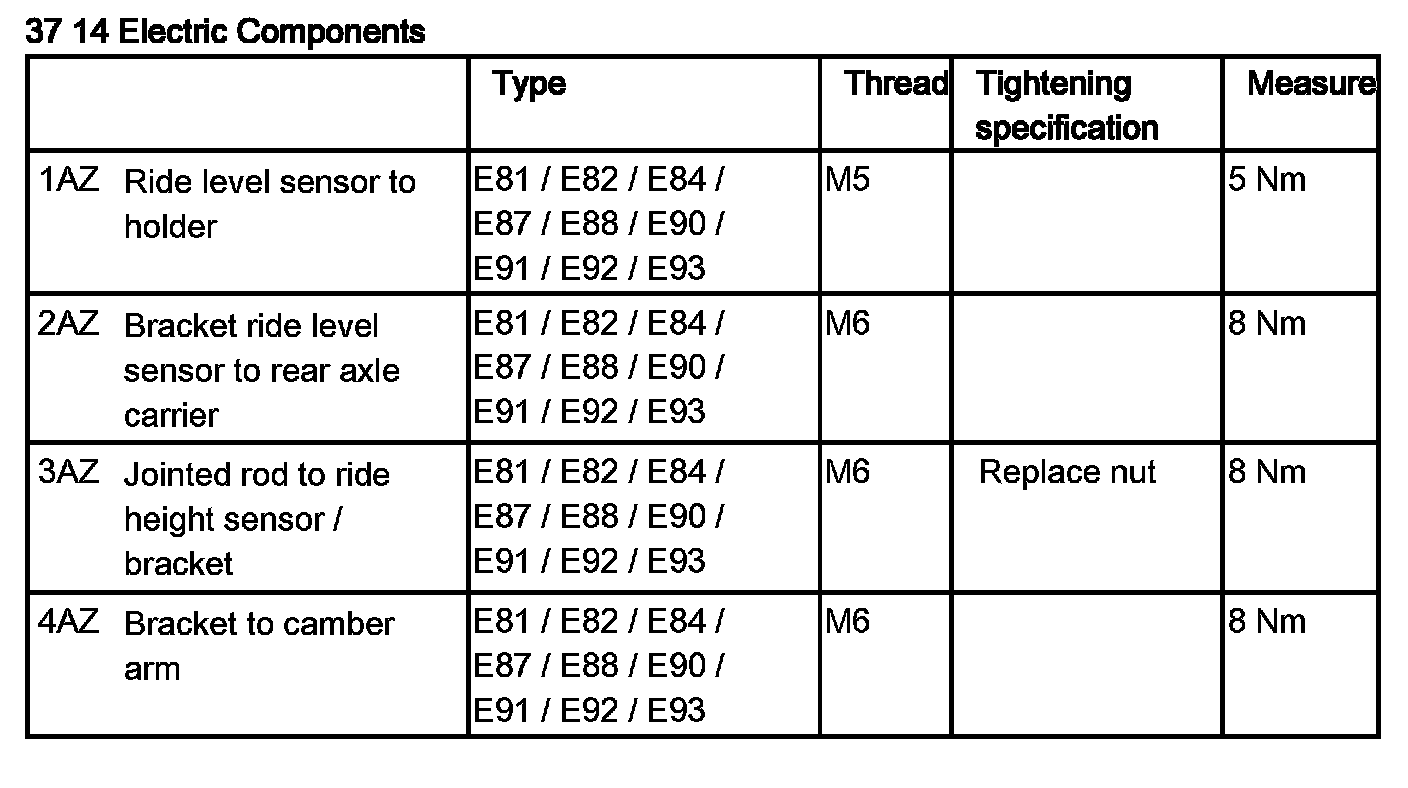

Tightening torque 37 14 1AZ.
Remove ride height sensor and disconnect plug connection (3).

Installation note:
Sensor lever (5) must point from ride height sensor to left front wheel.







After installation:
- Check headlight adjustment, correct if necessary.
