Home >> BMW >> 2011 >> 335is Convertible (E93) L6-3.0L Turbo (N54T) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams >> Convenient Start (Without EWS4)

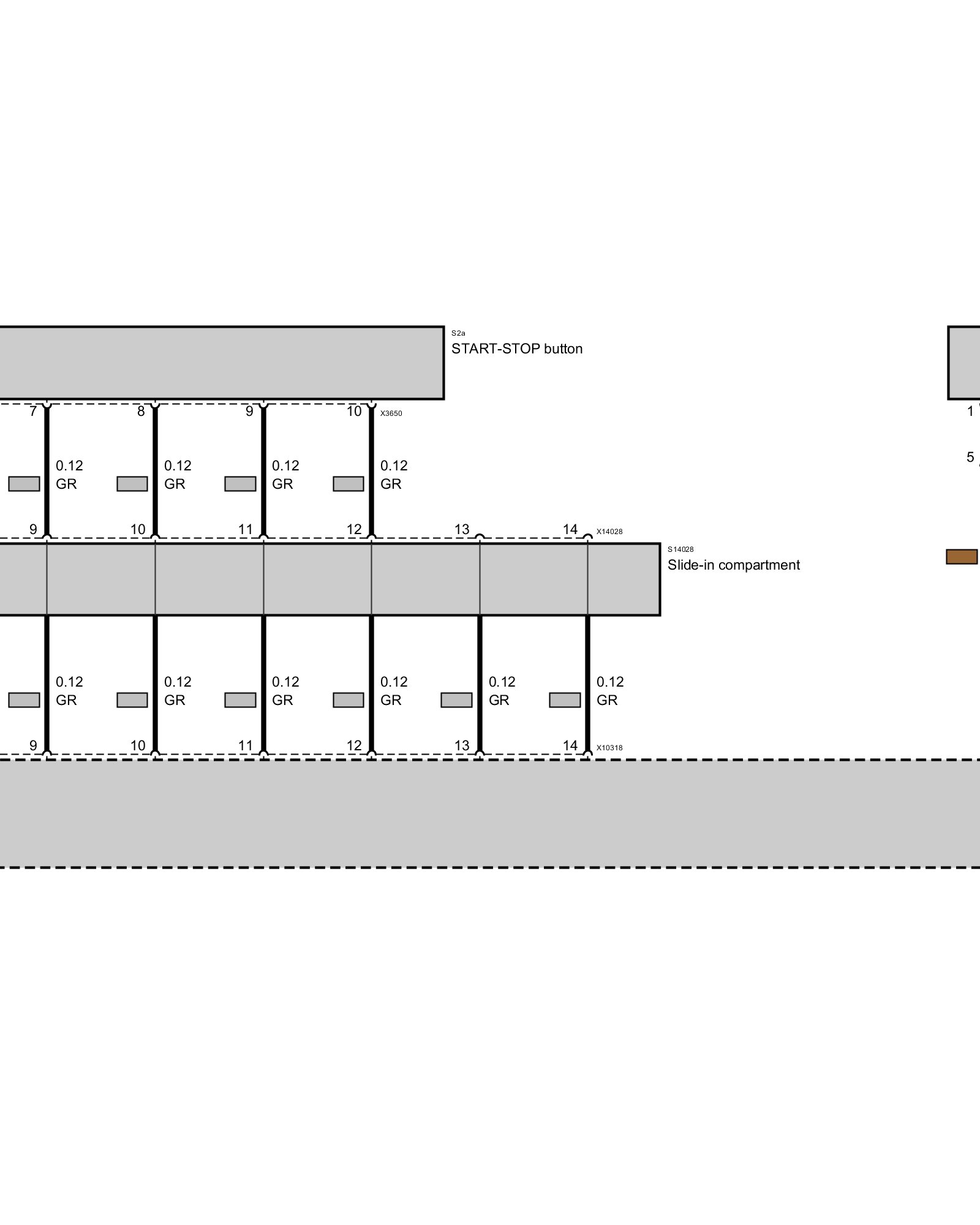

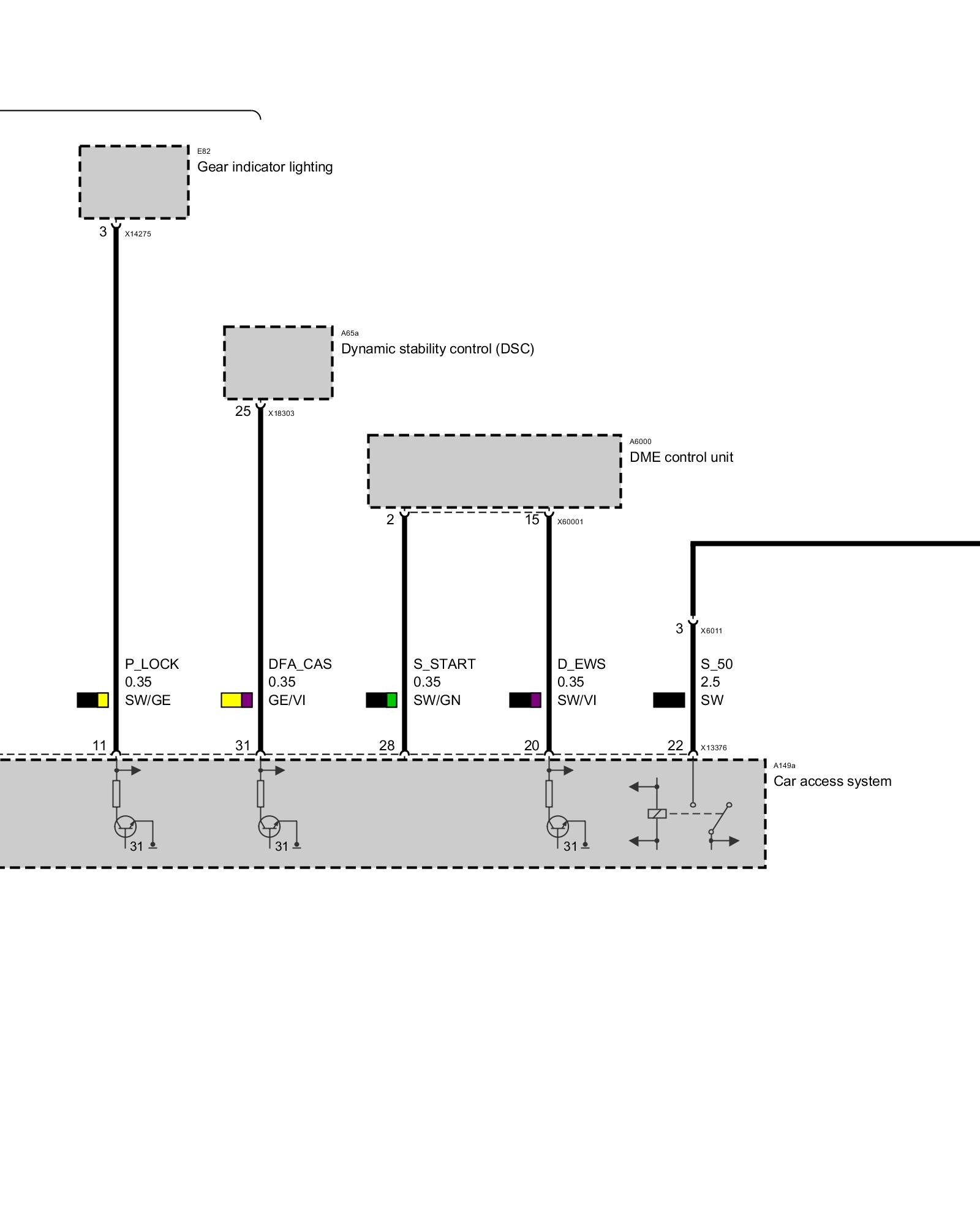

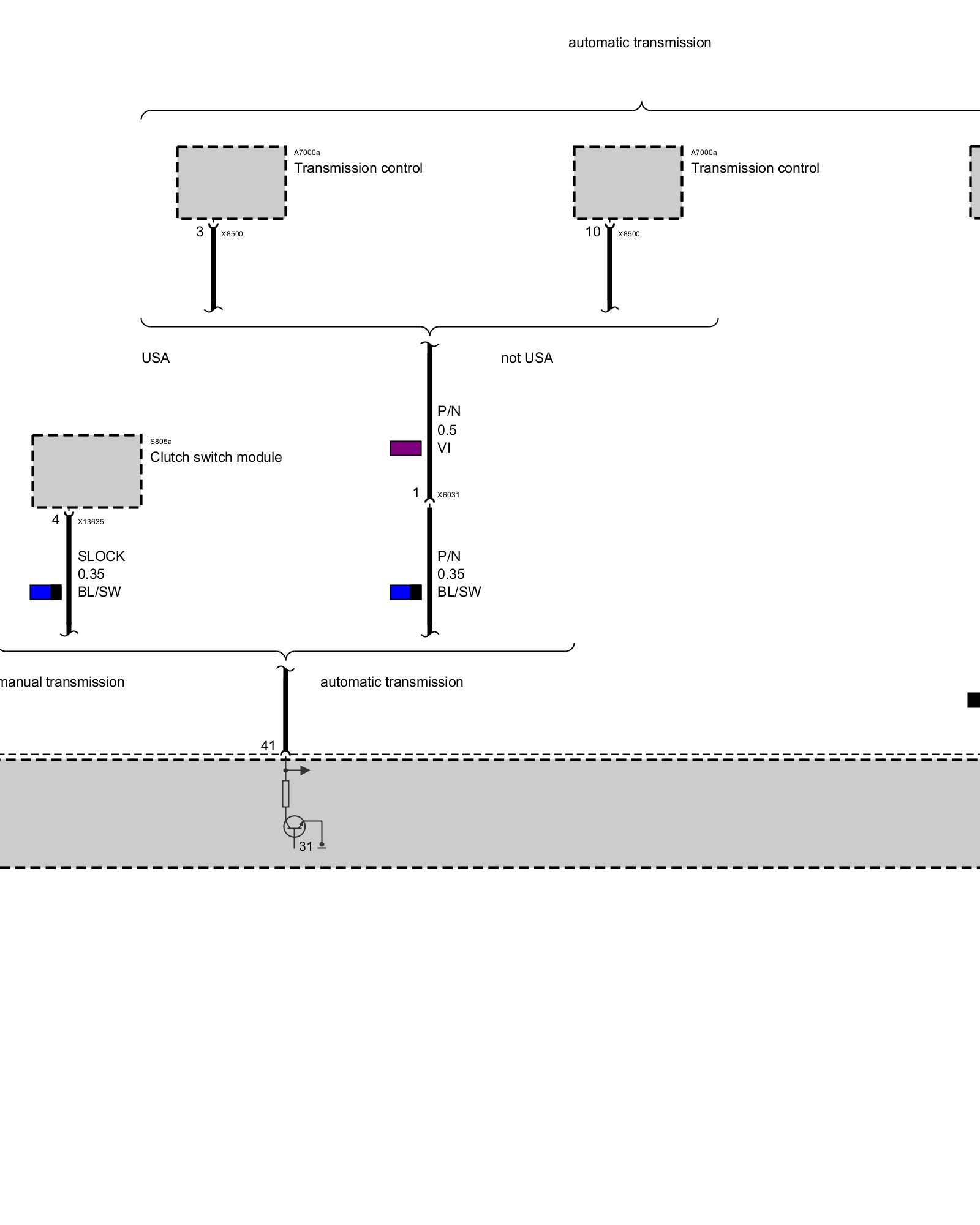

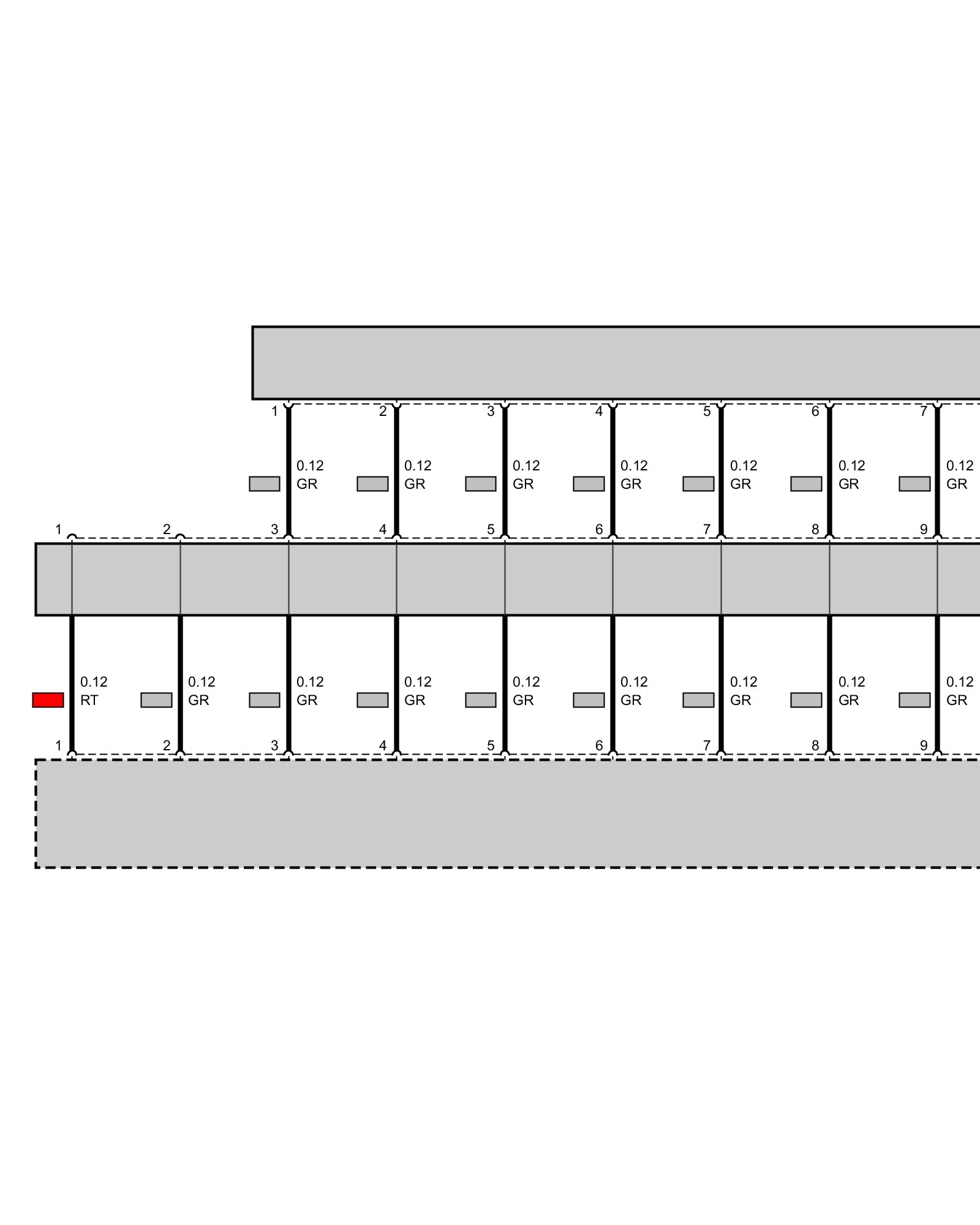

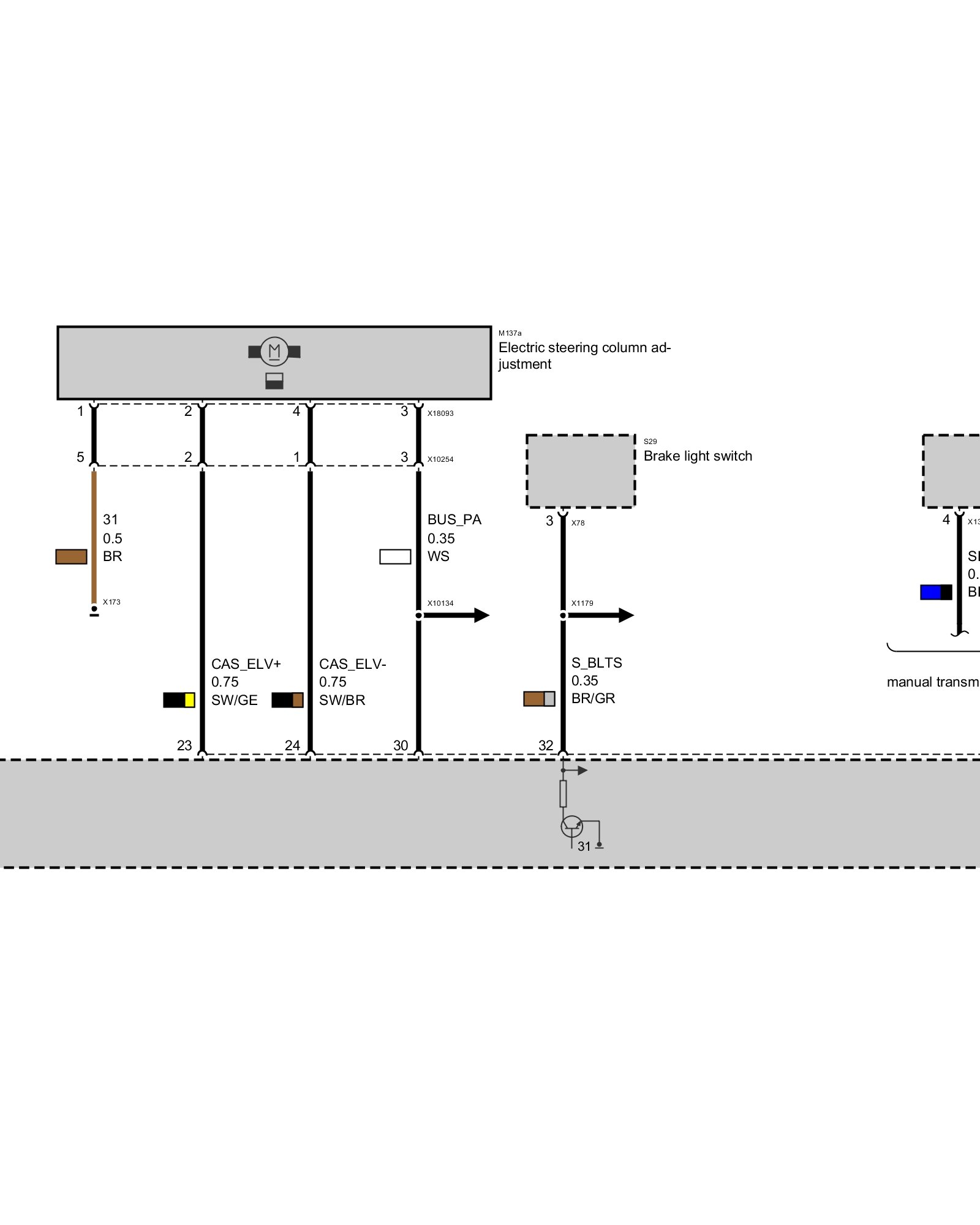

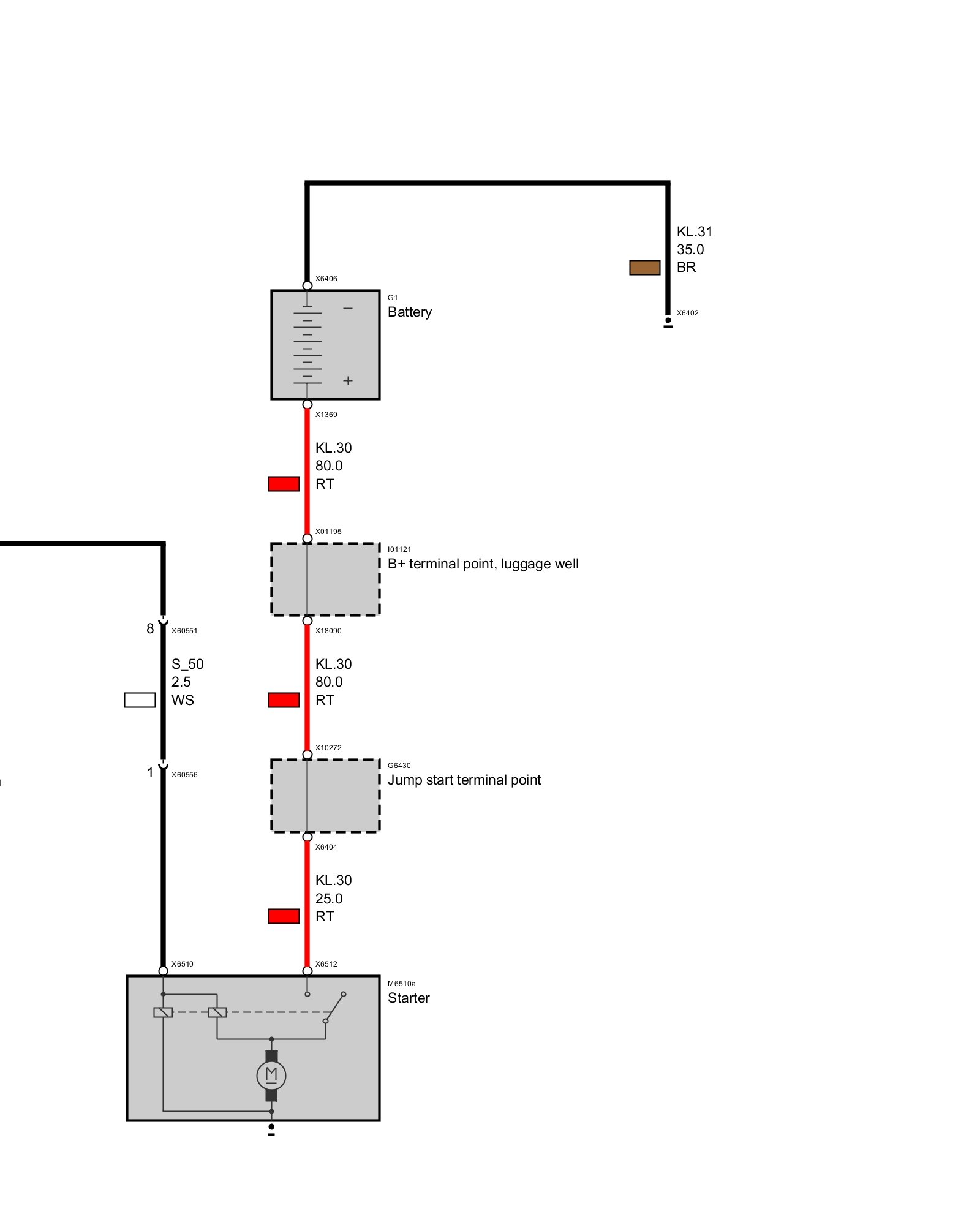

Convenient Start (Without EWS4)



Convenient Start
