61 31 229 Removing and Installing/Replacing Both Switches on Sport Steering Wheel

61 31 229 Removing And Installing/replacing Both Switches On Sport Steering Wheel







Necessary preliminary tasks:
- Remove airbag unit

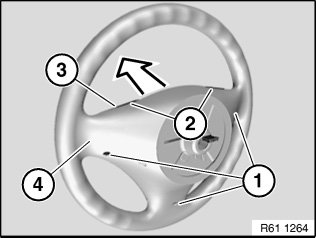

NOTE: Illustrations show multifunction steering wheel (4) removed.

Release screws (1).
Detach decorative trim (3) in direction of arrow from holders (2).
Disconnect associated plug connection and remove complete decorative trim (3).

Installation:
Make sure electrical leads are correctly routed.

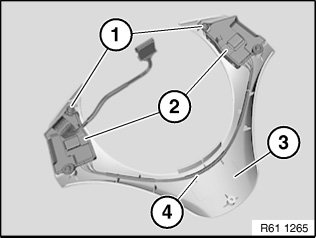

Feed wiring harness (4) out of associated holders.
Release screws (1) and remove both multifunction steering wheel switches (2) from decorative trim (3).

Installation:
Make sure there is a uniform gap between both multifunction steering wheel switches (2) and decorative trim (3).
