65 77 740 Removing and Installing (Replacing) Left Front Door Sensor

65 77 740 - Removing and installing (replacing) left front door sensor





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Warning!
Note airbag safety instructions [1][2]Safety Regulations For Handling Components With Gas Generators!
Incorrect handling can activate airbag and cause injury.





Necessary preliminary tasks:
- Detach sound insulation [1][2]51 48 060 Removing and Installing/Replacing Sound Insulation In Left or Right Front Door in work area

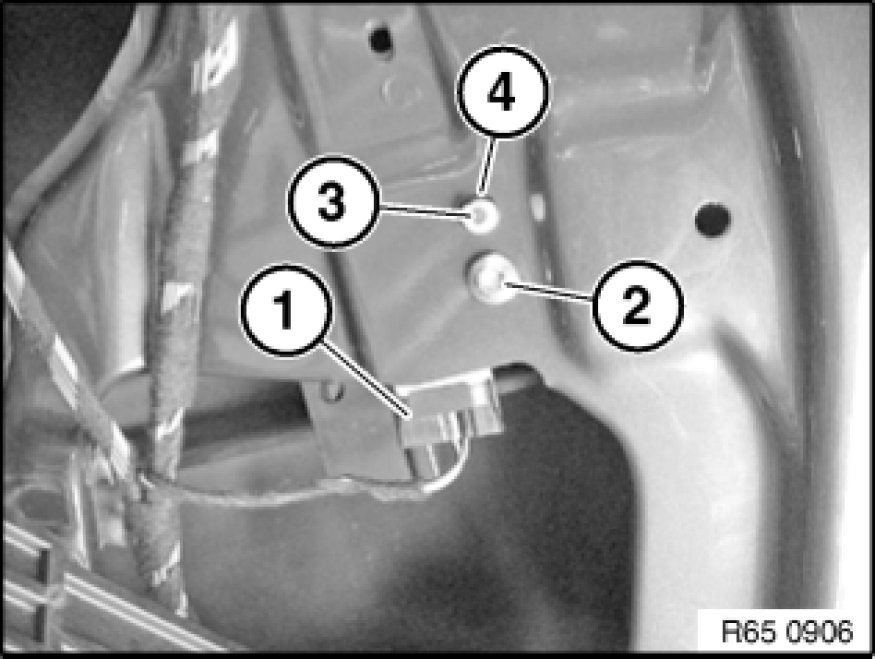

Unfasten plug connection (1) and disconnect.
Release screw (2).
Tightening torque 65 77 7AZ Airbag Triggering Control.
Remove sensor with pin (3) from door panel fit (4) towards rear.

Installation Note:
Make sure fit (3) is correctly seated.
