72 11 096 Removing and Installing/Replacing Rear Left or Right Lower Belt Fitting

72 11 096 - Removing and installing or replacing rear left or right lower belt fitting





Necessary preliminary tasks:
- Remove rear seat Removing and Installing/Replacing Left or Right Rear Seat

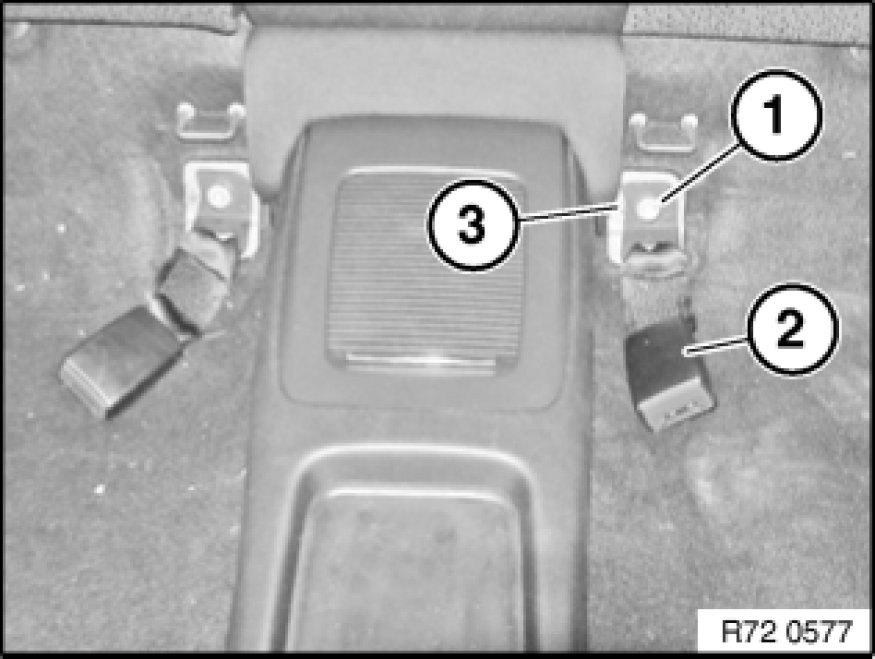

Illustration show removal of the left lower belt fitting; proceed in the same way for the right fitting.
Release screw (1).
Tightening torque 72 11 23AZ Specifications.
Remove lower belt fitting (2).

Installation:
Pin (3) determines the installation position and prevents lower belt (2) from turning.
