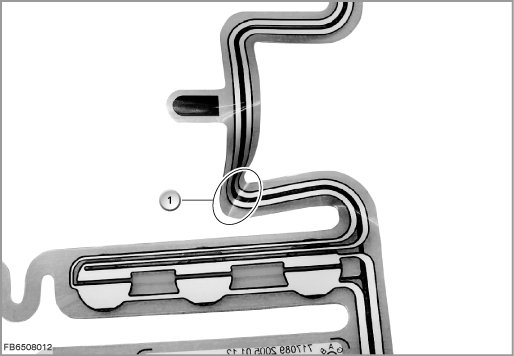

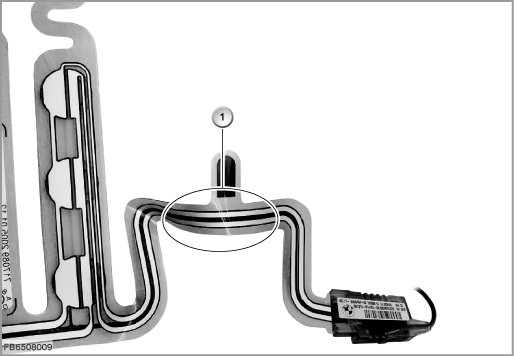

Fig. 1: Conductor in front of electronics has slipped






Index / Description
1 Conductor has slipped

Fig. 2: Conductor tracks on transverse seams slipped






Index / Description
1 Conductor has slipped

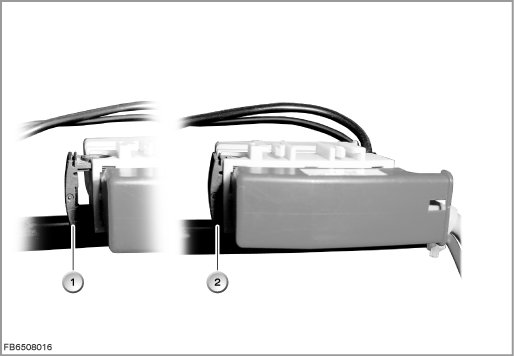

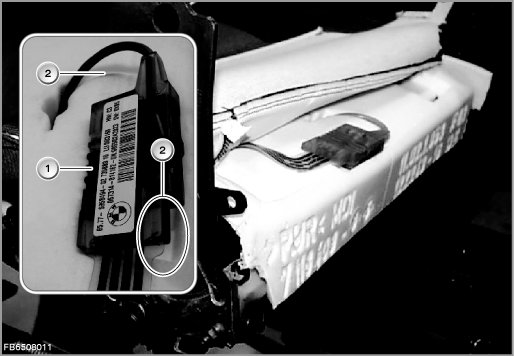

Fig. 3: Cast electronics box is displaced or raised






Index / Description
1 Electronics box
2 Electronics box has slipped

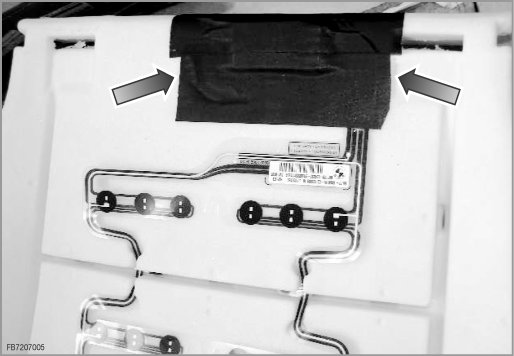

Fig. 4: Use cloth adhesive tape to attach the electronic component into the recess of the seat cushion






Fig. 5: Seat occupation mat is kinked






Index / Description
1 Conductor track twisted

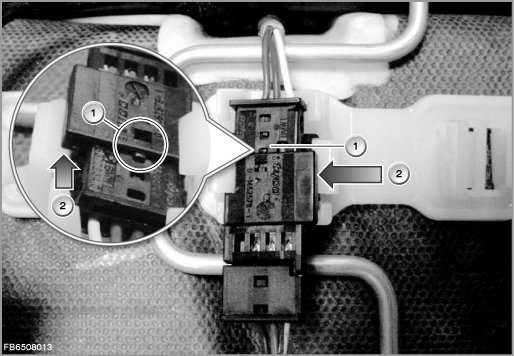

Fig. 6: connector not correctly snapped in and not correctly locked in the bracket of the base springs






Index / Description
1 Connector not locked in place
2 Connector not correctly locked in place in the bracket of the base springs

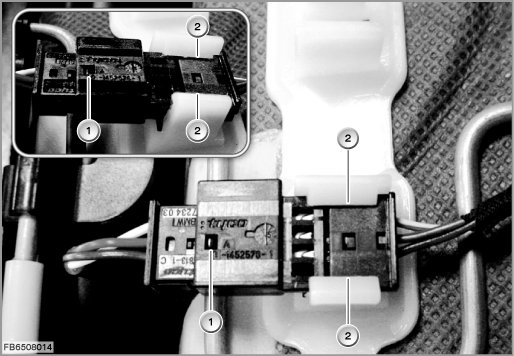

Fig. 7: connector correctly snapped in and correctly locked in the bracket of the base springs






Index / Description
1 Connector locked in place correctly
2 Connector locked in place correctly in the bracket of the base springs

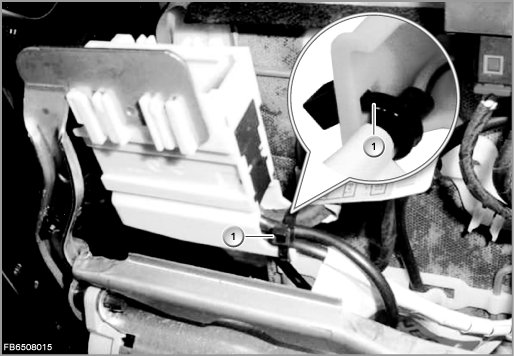

Fig. 8: Secure the central seat connector with cable ties






Index / Description
1 Cable tie

Fig. 9: Locking of central seat connector






Index / Description
1 Slider not locked in position
2 Slider locked in position
