36 11 523 Removing and Installing/Replacing an RDC Trigger Transmitter (Rear)

36 11 523 - Removing and installing/replacing an RDC trigger transmitter (rear)





Necessary preliminary tasks:
- Partially detach rear wheel arch trim Service and Repair
After installation:
- Carry out resetting 36 11 503 Resetting RDC (Tire Pressure Control) of RDC

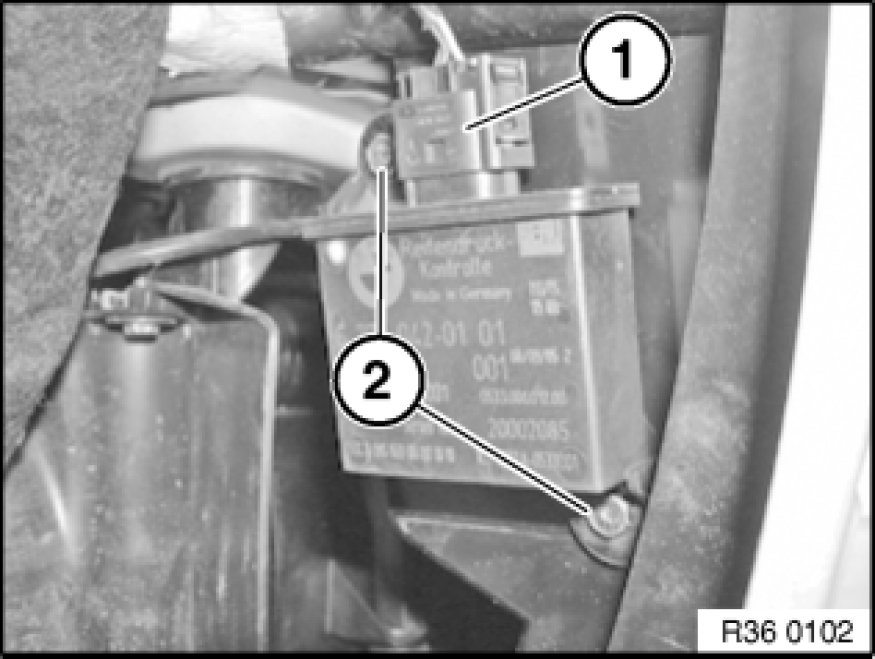

Disconnect plug connection (1).
Release screws (2) and remove trigger transmitter.

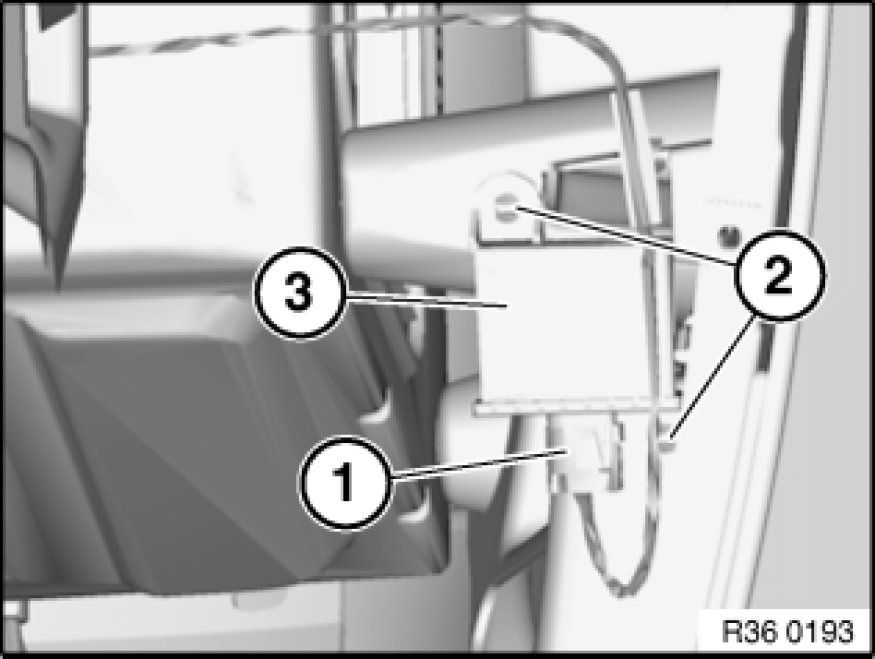

E90 and E91 from 09/2008:
Disconnect plug connection (1).
Press holder (2) together and detach trigger transmitter (3) towards front.
