36 11 121 Removing and Installing/Replacing an RDC Trigger Transmitter (Front)

36 11 121 - Removing and installing/replacing an RDC trigger transmitter (front)





Necessary preliminary tasks:
- Partially detach front wheel arch trim 51 71 038 Removing and Installing/Replacing Front Left or Right Wheel Arch Cover (Front Section)

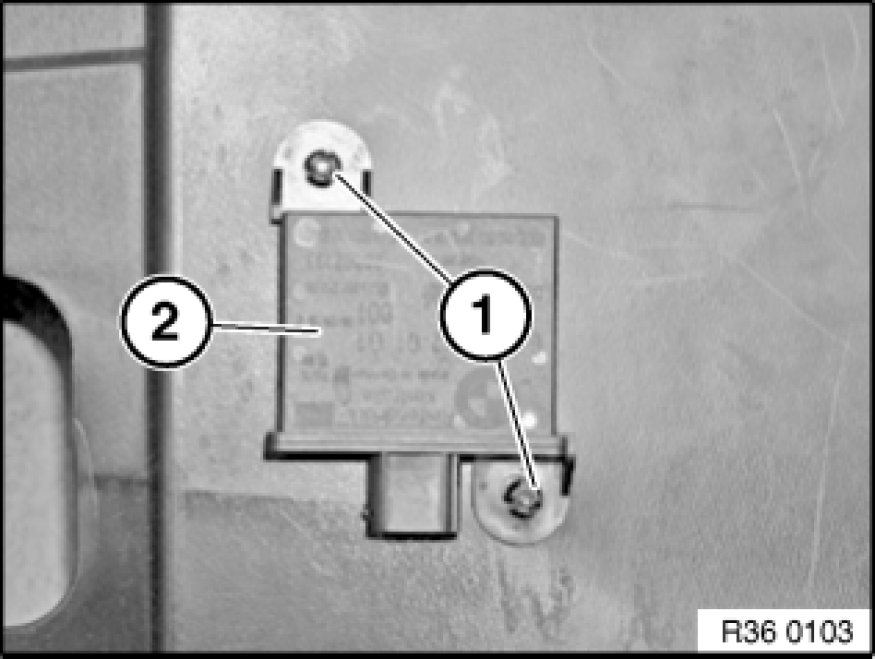

Press through studs (1) of expander rivets towards rear.
Remove trigger transmitter (2).

Installation:
If necessary, replace expander rivets.

After installation:
- Carry out resetting of RDC 36 11 503 Resetting RDC (Tire Pressure Control)
