Fuel Pump Control Unit: Service and Repair

16 14 500 - Removing and installing or replacing control unit for electric fuel pump





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove backrest Removing and Installing/Replacing Backrest





Replacement:
- Except for M3, carry out programming/coding Programming and Relearning (M3 is not programming- or coding-relevant)

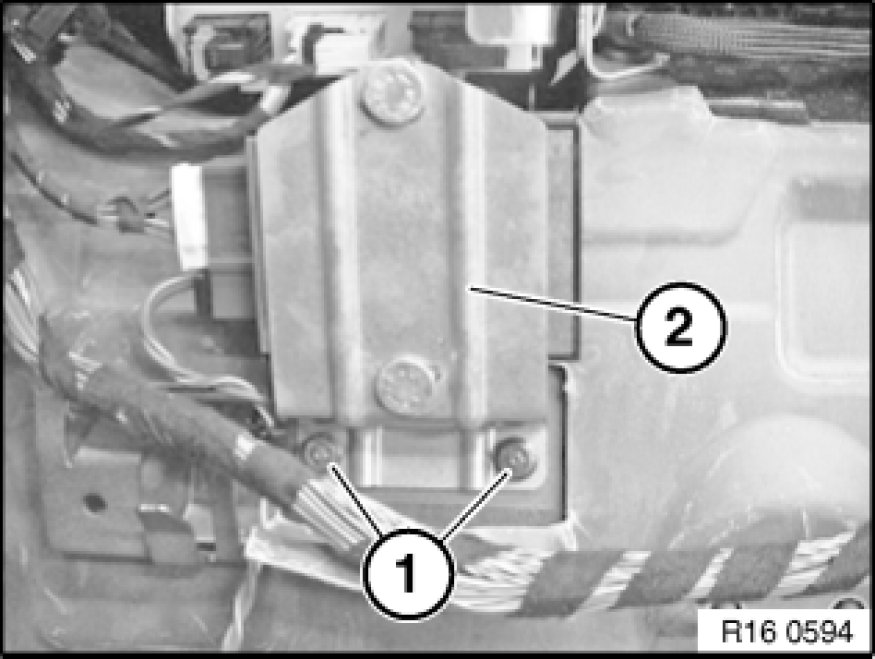

Release nuts (1) and remove holder (2).

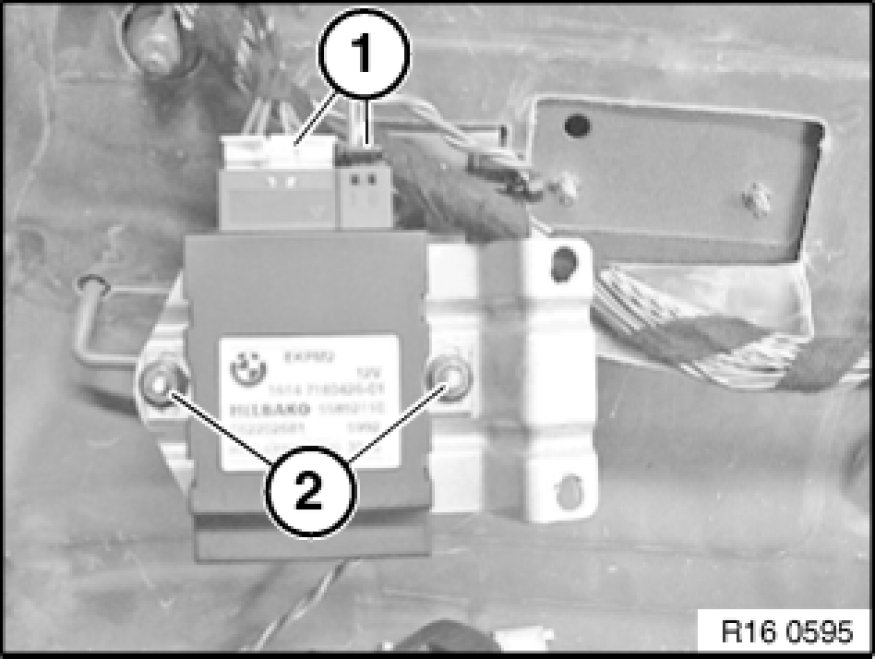

Unlock plug connections (1) and disconnect.
Release nuts (2) and remove control unit.

Installation Note:
Tightening torque 16 14 2AZ 16 14 Fuel Pump.
